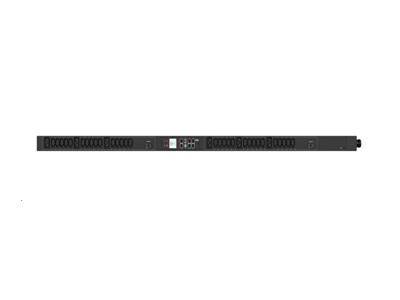

LEGRAND-RARITAN PDU 1PH, 208VAC 30A (24A RATED); 36 OUTLETS 6866628
SKU
6866628
CA$3,172.76
Legrand-Raritan Raritan Intelligent PDU 1PH, 208V AC, 30A (24A rated); 30x C13, 6x C19; NEMA L6-30P (Bottom-bottom feed), 5.0kVA; Outlet Metered/Switched, 0U Vertical, SecureLock ready, Color Display, Ethernet, serial, 36 Yellow
Category: Power Distribution Units
- Primary Information
Power / Device Type: Power Distribution Unit Voltage Output: 208V Power / Voltage Required: 208V Power Provided (VA): 5000 VA Networking Type: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n). Input Connector(s): NEMA L6-30P (2P3W) Output Connector(s): (30) IEC320 C13,(6) IEC320 C19 Width: 2.1 Inch Depth: 2.6 Inch Height: 70.1 Inch Service & Support Type: 2 years manufacturer warranty Features: Energy Metering Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor Metering Accuracy ISO/IEC 62053-21 1% Remote Outlet Switching Yes Metering per input line Yes for all models Metering per Branch Circuit Breaker Yes Environmental Sensor Ready Yes Compatible Sensors Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure. View all sensors. Cascading Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection. Onboard Display Color, matrix LCD display : Voltage, current, or active power (per line, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | RARITAN |
|---|---|
| UNSPSC | 39121017 |
| Part# | RAR-PX3-5294V-K6 |
| MFG Part# | PX3-5294V-K6 |
| Power / Device Type | Power Distribution Unit |
