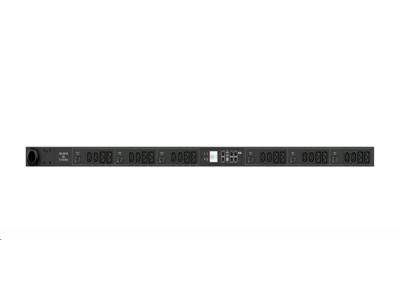

LEGRAND-RARITAN PDU 3PH 208VAC 60A (48A-PH RATED) 24 OUTLETS 7116036
SKU
7116036
CA$4,213.78
Legrand-Raritan RARITAN INTELLIGENT PDU 3PH 208V AC 60A (48A-PH RATED) 12X C13 12X C19 IEC 60309 3P+E 9H 60A (DELTA BOTTOM-FRONT FEED) 17.3KVA OUTLET METERED-SWITCHED 0U VERTICAL SECURELOCK READY V2 OUTLET SEQUENCE COLOR DISPLAY ETHERNET SERIAL 2X USB-A USB-B
Category: Power Distribution Units
- Primary Information
Power / Device Type: Power Distribution Unit Voltage Output: 208V Power / Voltage Required: 208V Power Provided (VA): 17300 VA Networking Type: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100 Base T) Ethernet. Optional WiFi (802.11 a/b/g/n). Input Connector(s): IEC 60309 3P+E 9h 60A (3P4W) Output Connector(s): (12) IEC320 C13,(12) IEC320 C19 Width: 2.3 Inch Depth: 3.2 Inch Height: 70.1 Inch Service & Support Type: 2 years manufacturer warranty Features: Energy Metering Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor Metering Accuracy ISO/IEC 62053-21 1% Remote Outlet Switching Yes Metering per input line Yes for all models Metering per Branch Circuit Breaker Yes Environmental Sensor Ready Yes Compatible Sensors Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure. View all sensors. Cascading Yes, Max 16 PDUs can be daisy chained using a USB or Ethernet connection. Onboard Display Color, matrix LCD display : Voltage, current, or active power (per line, per breaker, or per receptacle / outlet); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | RARITAN |
|---|---|
| UNSPSC | 39121017 |
| Part# | RAR-PX3-5551-V2 |
| MFG Part# | PX3-5551-V2 |
| Power / Device Type | Power Distribution Unit |
