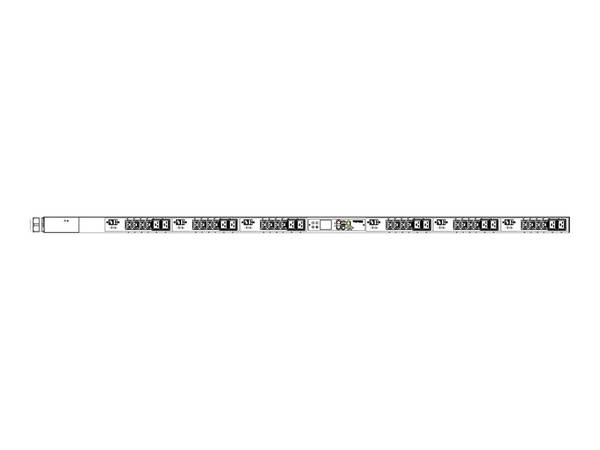

LEGRAND-RARITAN PDU 3PH, 208VAC 60A (48A/PH RATED); 36 OUTLETS 6901667
SKU
6901667
CA$5,302.88
Legrand-Raritan Raritan Intelligent PDU 3PH, 208V AC, 60A (48A/PH rated); 24x C13, 12x C19; IEC 60309 3P+E 9h 60A (Delta Bottom-bottom feed), 17.3kVA; Outlet Metered/Switched, 0U Vertical, SecureLock ready, V2 Outlet Sequence, Color Display, Ethernet, serial, 2x USB-A, USB-B
Category: Power Distribution Units
- Primary Information
Product Description: Raritan Dominion PX PX3-5905V-V2 - power distribution unit - 20000 VA Device Type: Power distribution unit - rack-mountable Rack Size: 0U Input Wiring: 3-phase 4 Wire delta Input Voltage: AC 208 V Output Voltage: AC 208 V Power Capacity: 20000 VA Input Connectors: 1 x power IEC 60309 60A Output connectors: 24 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A Networking: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH Color: Black powder coat Dimensions (WxDxH): 2.3 in x 3.1 in x 78 in - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Color: Black powder coat - Power Device
Input Voltage: AC 208 V Input Voltage Range: AC 208 - 240 V Input Wiring: 3-phase 4 Wire delta Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60309 60A Power Output Connectors Details: 24 x power IEC 60320 C13 - 208 V 12 A ¦ 12 x power IEC 60320 C19 - 208 V 16 A Output Voltage: AC 208 V Max Electric Current: 48 A Power Capacity: 20000 VA Circuit Protection: Circuit breaker - Networking
Remote Management Interface: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH - Expansion / Connectivity
Interfaces: 1 x LAN - RJ-45 ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) ¦ 1 x monitoring - RJ-12 ¦ 1 x monitoring - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B - Miscellaneous
Cables Included: Power cable - integrated - 10 ft Rack Mounting Kit: Included Features: LED display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready Compliant Standards: UL, ICES-003 Class A, RoHS, FCC Part 15 A, cULus - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 140 °F Humidity Range Operating: 5 - 85% - Dimensions & Weight
Width: 2.3 in Depth: 3.1 in Height: 78 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | RARITAN |
|---|---|
| UNSPSC | 39121017 |
| Part# | RAR-PX3-5905V-V2 |
| MFG Part# | PX3-5905V-V2 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black powder coat |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, HTTPS, SNMP 2, SNMP 3, SSH, Telnet |
