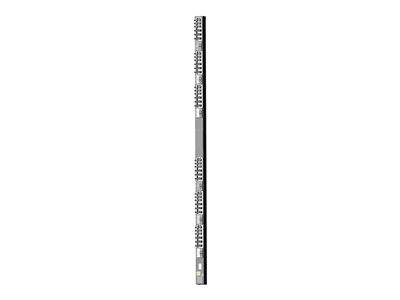

LEGRAND SERVERTECH PDU OU 208V-3-PHASE 18 C13+ 18CX 7262699

SKU
7262699
CA$2,217.70
LEGRAND-SERVERTECH PDU 0U 36 RAMLOCK HDOT OUTLETS(18 C13+18CX) 208V/3-PH DELTA





buy now pay later
  • Primary Information
    Product Description: Server Technology PRO3X Basic PDU C3B36RL - power distribution unit - 14.4 kW
    Device Type: Power distribution unit - rack-mountable
    Rack Size: 0U
    Input Voltage: AC 208 V
    Output Voltage: AC 208 V
    Power Capacity: 14.4 kW
    Input Connectors: 1 x power CS8365 3P+G
    Output connectors: 18 x power IEC 60320 C13 - 208 V 15 A ¦ 18 x power IEC 60320 Cx - 208 V 20 A
    Dimensions (WxDxH): 2.2 in x 3.2 in x 70 in
    Manufacturer Warranty: 2-year warranty
  • General
    Device Type: Power distribution unit - rack-mountable
    Height (Rack Units): 0U
  • Power Device
    Input Voltage: AC 208 V
    Frequency Required: 50/60 Hz
    Input Connectors: 1 x power CS8365 3P+G
    Power Output Connectors Details: 18 x power IEC 60320 C13 - 208 V 15 A ¦ 18 x power IEC 60320 Cx - 208 V 20 A
    Output Voltage: AC 208 V
    Max Electric Current: 50 A
    Power Capacity: 14.4 kW
    Circuit Protection: Circuit breaker
  • Miscellaneous
    Features: High Density Outlet Technology (HDOT), high retention locking outlets, Branch Circuit Protection, Ramlock Locking Outlets, high temperature protection
    Compliant Standards: UL 489, CSA C22.2 No. 5, EN 60947-2
  • Manufacturer Warranty
    Service & Support: Limited warranty - parts and labor - 2 years
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 140 °F
    Humidity Range Operating: 8 - 90% RH (non-condensing)
  • Dimensions & Weight
    Width: 2.2 in
    Depth: 3.2 in
    Height: 70 in
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 39121017
BRANDSSERVERTECH
UNSPSC39121017
Part#CTG-C3B36RL-DFJE0AT2
MFG Part#C3B36RL-DFJE0AT2
Device TypePower distribution unit - rack-mountable
Circuit ProtectionCircuit breaker
