MELLANOX QUANTUM HDR 11842511
SKU
11842511
Category: Hubs & Switches
- Primary Information

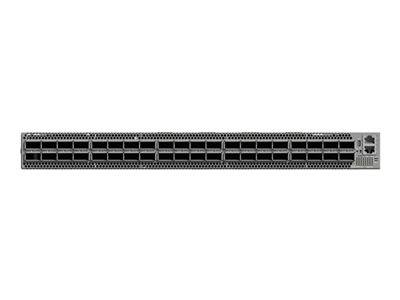

Product Description: Mellanox Quantum QM8790 - switch - 40 ports - smart - rack-mountable Device Type: Switch - 40 ports - smart Enclosure Type: Back to front airflow rack-mountable 1U Subtype: InfiniBand Ports: 40 x HDR InfiniBand QSFP56 Performance: Non-blocking switching capacity: 16 Tbps ¦ Bandwidth per port (40 HDR): 200 Gbps ¦ Bandwidth per port (80 HDR with splitter cables): 100 Gbps ¦ Port-to-port latency: 90 ns ¦ Performance: 15800000 messages per second Capacity: Virtual lanes: 9 Features: Port mirroring, reset button, static routing, adaptive routing, congestion control, hot swappable fan, Co-Design SHArP technology, VL2VL mapping Compliant Standards: IBTA 1.21, IBTA 1.3 Power: AC 120/230 V (50 - 60 Hz) Power Redundancy: Yes Environmental Standards: ENERGY STAR Qualified Manufacturer Warranty: 1-year warranty - General
Device Type: Switch - 40 ports - smart Enclosure Type: Back to front airflow desktop, rack-mountable 1U Subtype: InfiniBand Ports: 40 x HDR InfiniBand QSFP56 Performance: Non-blocking switching capacity: 16 Tbps ¦ Bandwidth per port (40 HDR): 200 Gbps ¦ Bandwidth per port (80 HDR with splitter cables): 100 Gbps ¦ Port-to-port latency: 90 ns ¦ Performance: 15800000 messages per second Capacity: Virtual lanes: 9 Features: Port mirroring, reset button, static routing, adaptive routing, congestion control, hot swappable fan, Co-Design SHArP technology, VL2VL mapping Compliant Standards: IBTA 1.21, IBTA 1.3 Status Indicators: Port status, power, Unit ID, system, link/activity, fan - Expansion / Connectivity
Interfaces: 40 x QSFP56 ¦ Management RJ-45 - Power
Power Device: Internal power supply - hot-plug Installed Qty: 2 Power Redundancy: Yes Power Redundancy Scheme: 1+1 Voltage Required: AC 120/230 V (50 - 60 Hz) 80 PLUS Certification: 80 PLUS Gold Features: 80 PLUS Gold efficiency ENERGY STAR Certified: Yes - Miscellaneous
Included Accessories: Rack rails kit Rack Mounting Kit: Included Compliant Standards: VCCI, CB, EMC, FCC, RoHS, ICES, cTUVus, ISO 7779, ETS 300 753, RCM, IFS HPC, CU - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 85% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | NVIDIA |
|---|---|
| UNSPSC | 43222612 |
| Part# | MNX-MQM8790-HS2R-11842511 |
| MFG Part# | MQM8790-HS2R |
| UPC | 7290108483611 |
| Device Type | Switch - 40 ports - smart |
| 80 PLUS Certification | 80 PLUS Gold |
| Enclosure Type | Back to front airflow desktop, rack-mountable 1U |
