MELLANOX SPECTRUM-2 11842235
SKU
11842235
CA$33,369.92

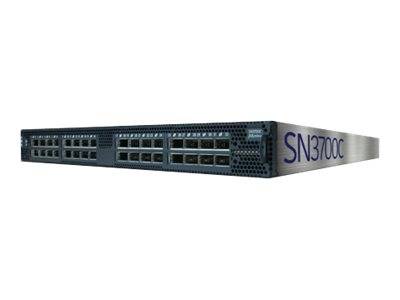

Spectrum-2 based 100GbE 1U Open Ethernet Switch with Onyx, 32 QSFP28 ports, 2 Power Supplies (AC), x86 CPU, standard depth, C2P airflow, Rail Kit
Category: Hubs & Switches
- Primary Information
Product Description: Mellanox Spectrum-2 MSN3700C - switch - 32 ports - managed - rack-mountable Device Type: Switch - 32 ports - L3 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 32 x 100 Gigabit QSFP28 Performance: Throughput: 6.4 Tbps ¦ Latency: 400 ns ¦ Packets per second: 4.76 Bpps Capacity: Packet buffer size: 42 MB Jumbo Frame Support: 9216 bytes Routing Protocol: BGP, VRRP, OSPFv2, static IPv4 routing Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, CLI Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, non blocking ports, hot swappable 3 fans, PFC, 42MB packet buffer Compliant Standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz Power: AC 100 - 264 V (50/60 Hz) Power Redundancy: Yes Dimensions (WxDxH): 16.9 in x 22 in x 1.7 in Weight: 24.47 lbs - General
Device Type: Switch - 32 ports - L3 - managed Enclosure Type: Front to back airflow rack-mountable 1U Subtype: 100 Gigabit Ethernet Ports: 32 x 100 Gigabit QSFP28 Performance: Throughput: 6.4 Tbps ¦ Latency: 400 ns ¦ Packets per second: 4.76 Bpps Capacity: Packet buffer size: 42 MB Jumbo Frame Support: 9216 bytes Routing Protocol: BGP, VRRP, OSPFv2, static IPv4 routing Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, CLI Authentication Method: RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP Features: Flow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, RSTP support, MSTP support, DCBX support, event log, ACL support, RADIUS support, Rapid PVST+, LACP support, LLDP support, DHCP relay, non blocking ports, hot swappable 3 fans, PFC, 42MB packet buffer Compliant Standards: IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz RAM: 8 GB Built-in Devices: 32 GB SSD - Expansion / Connectivity
Interfaces: 32 x 100Gbit LAN QSFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x USB ¦ 1 x serial RJ-45 - Power
Power Device: Internal power supply - hot-plug Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Power Redundancy Scheme: 1+1 Voltage Required: AC 100 - 264 V (50/60 Hz) - Miscellaneous
Included Accessories: Rack rails kit Compliant Standards: VCCI, CB, FCC, ICES, cTUVus, RCM - Software / System Requirements
Software Included: Mellanox Onyx - Dimensions & Weight
Width: 16.9 in Depth: 22 in Height: 1.7 in Weight: 24.47 lbs - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 85% Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | NVIDIA |
|---|---|
| UNSPSC | 43222612 |
| Part# | MNX-MSN3700-CS2R |
| MFG Part# | MSN3700-CS2R |
| UPC | 7290108484113 |
| Device Type | Switch - 32 ports - L3 - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Remote Management Protocol | CLI, HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, Telnet |
