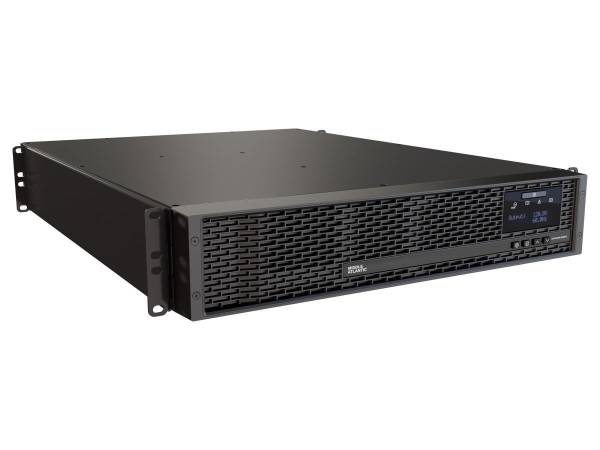

MIDDLE ATLANTIC PWER BKUP 2000VA/120VAC UPS 7256459
SKU
7256459
Category: UPS
- Primary Information
Product Description: Middle Atlantic NEXSYS Series UPS Backup Power System with RackLink - 2000VA, 20 Amp - UPS - 1800 Watt - 2000 VA - Sealed Lead Acid (SLA) - 9 Ah Device Type: UPS - rack-mountable Cord Length: 6 ft Rack Size: 19" - 2U Weight: 63.05 lbs Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 1800 Watt / 2000 VA Input Connectors: 1 x power NEMA 5-20 Output connectors: 8 x power NEMA 5-20 Battery: Sealed Lead Acid (SLA) - 9 Ah Batteries Qty: 4 Run Time (Up To): 3 min at full load Networking: RS-232, USB, RJ-45 Remote Management Protocol: Telnet, SNMP 3, HTTP, HTTPS, SSH, RADIUS Color: Black Dimensions (WxDxH): 19 in x 22 in x 3.5 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 3-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" Cord Length: 6 ft Color: Black - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 80 - 158 V Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-20 Power Output Connectors Details: 8 x power NEMA 5-20 Output Voltage: AC 120 V Max Electric Current: 20 A Power Capacity: 1800 Watt / 2000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 1000 Joules Circuit Protection: Circuit breaker Power Factor (PF): 0.9 - Battery
Quantity: 4 Technology: Sealed Lead Acid (SLA) Voltage Provided: 48 V Capacity: 9 Ah Run Time (Up To): 3 min at full load ¦ 10 min at half load Recharge Time: 6 hours Transfer Time: 10 ms - Networking
Remote Management Interface: RS-232, USB, RJ-45 Remote Management Protocol: Telnet, SNMP 3, HTTP, HTTPS, SSH, RADIUS - Expansion / Connectivity
Interfaces: 1 x management (RS-232) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x management - RJ-45 ¦ 2 x dry contact - terminal block ¦ 1 x EPO (emergency power off) - terminal block - Miscellaneous
Cables Included: Power cable 6 ft Features: Hot-swappable battery, audible alarm, LCD display, Automatic Voltage Regulation (AVR), Metal Oxide Varistor Technology (MOV), fault alarm, low battery alarm, overload alarm, EBM - External Battery Module - Auto Detection Compliant Standards: FCC Class A certified, CSA, UL 1778, RoHS, cTUVus, REACH - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 50 dB - Dimensions & Weight
Width: 19 in Depth: 22 in Height: 3.5 in Weight: 63.05 lbs - Dimensions & Weight (Shipping)
Shipping Weight: 70.99 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121011 |
| Part# | MAA-UPX-RLNK-2000R-2 |
| MFG Part# | UPX-RLNK-2000R-2 |
| UPC | 656747395628 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Color | Black |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, HTTPS, RADIUS, SNMP 3, SSH, Telnet |
