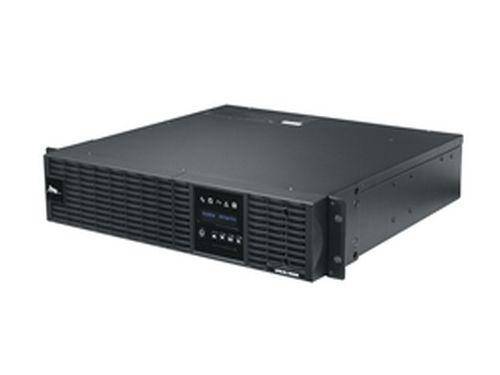

MIDDLE ATLANTIC PWR BKUP OL UPS 2200VA120V60HZ 6479079
SKU
6479079
CA$4,657.19
Category: Batteries
- Primary Information
Product Description: Middle Atlantic Premium Online Series UPS-OL2200R - UPS - 1800 Watt - 2200 VA Device Type: UPS - rack-mountable Rack Size: 19" - 2U Input Voltage: AC 120 V Output Voltage: AC 100/110/115/120/125 V Power Capacity: 1800 Watt / 2200 VA Input Connectors: 1 x power NEMA 5-20P Output connectors: 6 x power NEMA 5-20R ¦ 1 x power NEMA L5-20R Battery: - 9 Ah Batteries Qty: 6 Run Time (Up To): 7 min at full load Networking: RS-232, USB Dimensions (WxDxH): 19 in x 22.2 in x 3.5 in Manufacturer Warranty: 3-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: On-line Input Voltage: AC 120 V Input Voltage Range: AC 100 - 125 V Frequency Provided: 50/60 Hz Frequency Required: 60 Hz Input Connectors: 1 x power NEMA 5-20P Power Output Connectors Details: 6 x power NEMA 5-20R ¦ 1 x power NEMA L5-20R Output Voltage: AC 100/110/115/120/125 V 50/60 Hz Power Capacity: 1800 Watt / 2200 VA Dataline Surge Protection: Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line Output Waveform: Sinewave Power Factor (PF): 0.99 - Battery
Quantity: 6 Voltage Provided: 12 V Capacity: 9 Ah Run Time (Up To): 7 min at full load ¦ 20 min at half load Transfer Time: 0 ms - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) ¦ 1 x management (USB) - Miscellaneous
Cables Included: Power cable 10 ft Features: Hot-swappable battery, audible alarm, LCD display, overload protection, cold-start function, cooling fan, Eco-Mode Compliant Standards: UL, EN 61000-4-5, FCC, RoHS - Software / System Requirements
Software Included: Middle Atlantic Power Manager - Manufacturer Warranty
Service & Support: Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 90% (non-condensing) - Dimensions & Weight
Width: 19 in Depth: 22.2 in Height: 3.5 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 26111700
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 26111700 |
| Part# | MAA-UPS-OL2200R |
| MFG Part# | UPS-OL2200R |
| UPC | 656747272585 |
| Device Type | UPS - rack-mountable |
| UPS Technology | On-line |
