MIDDLE ATLANTIC PWR BKUP UPS STD 2200VA 6478342
SKU
6478342
Category: Batteries
- Primary Information

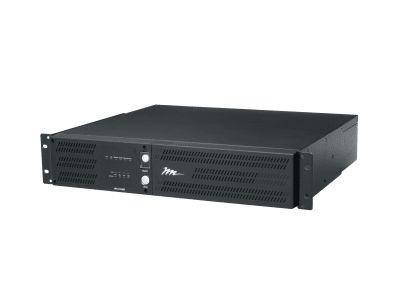

Product Description: Middle Atlantic 2RU Select Series UPS - UPS Backup Power - 2200VA - UPS - 1320 Watt - 2200 VA Device Type: UPS - rack-mountable Rack Size: 19" - 2U Input Voltage: AC 120 V Output Voltage: AC 120 V ± 10% Power Capacity: 1320 Watt / 2200 VA Input Connectors: 1 x power NEMA 5-20 Output connectors: 8 x power NEMA 5-20 Battery: - 9 Ah Batteries Qty: 4 Run Time (Up To): 4 min at full load Networking: USB Color: Black Dimensions (WxDxH): 19 in x 16.5 in x 3.5 in Manufacturer Warranty: 3-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" Color: Black - Power Device
Input Voltage: AC 120 V Input Voltage Range: AC 90 - 140 V Frequency Provided: 60 Hz Frequency Required: 60 Hz Input Connectors: 1 x power NEMA 5-20 Power Output Connectors Details: 8 x power NEMA 5-20 Output Voltage: AC 120 V ± 10% - 60 Hz Power Capacity: 1320 Watt / 2200 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 1840 Joules Circuit Protection: Circuit breaker - Battery
Quantity: 4 Voltage Provided: 12 V Capacity: 9 Ah Run Time (Up To): 4 min at full load ¦ 13 min at half load Transfer Time: 8 ms Features: Maintenance free, sealed - Networking
Remote Management Interface: USB - Expansion / Connectivity
Interfaces: 1 x management (USB) ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 10 ft Features: Audible alarm, emergency power off, Automatic Voltage Regulation (AVR), overload protection Compliant Standards: RoHS, GREENGUARD - Manufacturer Warranty
Service & Support: Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 19 in Depth: 16.5 in Height: 3.5 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 26111700
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 26111700 |
| Part# | MAA-UPS-S2200R |
| MFG Part# | UPS-S2200R |
| UPC | 656747237164 |
| Device Type | UPS - rack-mountable |
| Surge Suppression | Yes |
| Color | Black |
| Circuit Protection | Circuit breaker |
