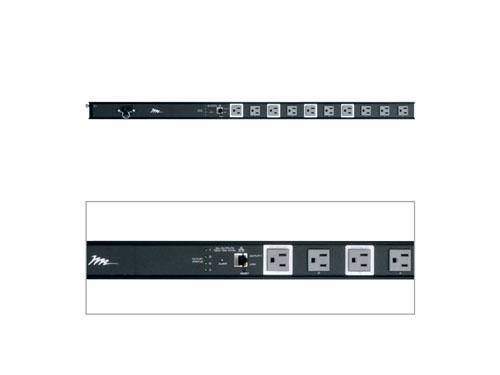

MIDDLE ATLANTIC PWR DIST 15A10 OUTIP CTRL VPS 6477570
SKU
6477570
Category: Power Distribution Units
- Primary Information
Product Description: Middle Atlantic Select Series Vertical PDU with RackLink RLNK-1015V - power distribution unit Device Type: Power distribution unit - external Input Voltage: AC 120 V Output Voltage: AC 120 V Input Connectors: Power IEC 60320 C14 Output connectors: 10 x power NEMA 5-15 Networking: Ethernet 10/100 Remote Management Protocol: HTTP Color: Anodized black Dimensions (WxDxH): 1.9 in x 1.6 in x 35.6 in Manufacturer Warranty: 3-year warranty - General
Device Type: Power distribution unit - external Color: Anodized black - Power Device
Input Voltage: AC 120 V Input Voltage Range: AC 80 - 140 V Frequency Required: 60 Hz Input Connectors: Power IEC 60320 C14 Power Output Connectors Details: 10 x power NEMA 5-15 Output Voltage: AC 120 V Max Electric Current: 15 A Surge Suppression: Yes Surge Response Time: 1 ns Surge Energy Rating: 120 Joules EMI/RFI Noise Filtration: 20 dB Max Spike Current: 12000 A Circuit Protection: Circuit breaker - Networking
Remote Management Interface: Ethernet 10/100 Remote Management Protocol: HTTP - Expansion / Connectivity
Interfaces: 1 x management (Ethernet) - RJ-45 - Miscellaneous
Cables Included: Power cable 9 ft Features: LED indicators, vertical orientation, firmware upgradable, remote ON/OFF function Compliant Standards: ISO 9001, ISO 14001, UL 60950-1, CSA C22.2 No. 60950-1, RoHS 2011/65/EU, FCC Part 15 Class B - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 1.9 in Depth: 1.6 in Height: 35.6 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121017 |
| Part# | MAA-RLNK-1015V |
| MFG Part# | RLNK-1015V |
| UPC | 656747275333 |
| Device Type | Power distribution unit - external |
| Surge Suppression | Yes |
| Color | Anodized black |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP |
