MIDDLE ATLANTIC PWR DIST DC PWR DIST45W CMPCT 6477245
SKU
6477245
CA$756.79

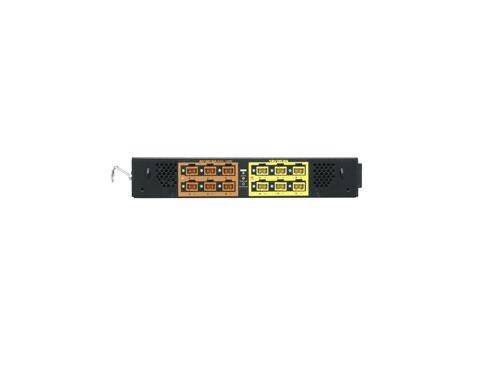

Legrand-Middle Atlantic 45W Multi-Mount Universal DC Power Distribution for Small to Medium Devices
Category: Power Distribution Units
- Primary Information
Product Description: Middle Atlantic PD series PD-DC-45 - power distribution unit - 45 Watt Device Type: Power distribution unit - external Cord Length: 6 ft Input Voltage: AC 120 V Output Voltage: AC 120 / DC 5 / DC 12 V Power Capacity: 45 Watt Input Connectors: 1 x power NEMA 5-15 Output connectors: 6 x screw terminal - 5 V 2 A ¦ 6 x screw terminal - 12 V 1.5 A ¦ 3 x power NEMA 5-15R/20R - 120 V 10 A ¦ 2 x 4 pin USB Type A - 5 V 2.1 A Dimensions (WxDxH): 5 in x 9.9 in x 1.7 in Manufacturer Warranty: 3-year warranty - General
Device Type: Power distribution unit - external Cord Length: 6 ft - Power Device
Input Voltage: AC 120 V Input Voltage Range: AC 100 - 132 V Frequency Required: 60 Hz Input Connectors: 1 x power NEMA 5-15 Power Output Connectors Details: 6 x screw terminal - 5 V 2 A ¦ 6 x screw terminal - 12 V 1.5 A ¦ 3 x power NEMA 5-15R/20R - 120 V 10 A ¦ 2 x 4 pin USB Type A - 5 V 2.1 A Output Voltage: AC 120 / DC 5 / DC 12 V Max Electric Current: 12 A Power Capacity: 45 Watt Surge Suppression: Yes Clamping Level: 595 V Circuit Protection: Circuit breaker - Miscellaneous
Cables Included: Power cable - external - 6 ft Features: Overcurrent protection, overload protection, temperature controlled fan, Metal Oxide Varistor Technology (MOV) Compliant Standards: FCC Class B certified, ISO 9001, ISO 14001, UL 60950-1, cULus, RoHS 2011/65/EU, CAN/CSA-C22.2 No. 60950-1 - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 3 years - Environmental Parameters
Sound Emission: 28 dBA - Dimensions & Weight
Width: 5 in Depth: 9.9 in Height: 1.7 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121017 |
| Part# | MAA-PD-DC-45 |
| MFG Part# | PD-DC-45 |
| UPC | 656747258343 |
| Device Type | Power distribution unit - external |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
