MILESTONE LG-LI UPS 2.0VA,120V 6702124
SKU
6702124
- Primary Information

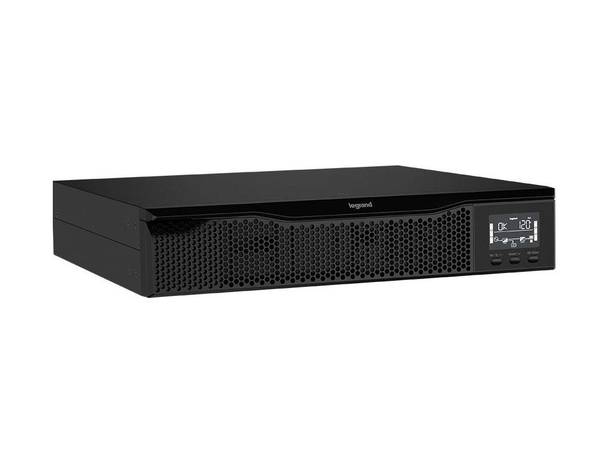

Product Description: Legrand Line Interactive UPS Series UPS-LL-2000RT - UPS - 1800 Watt - 2000 VA Device Type: UPS - rack-mountable Rack Size: 2U Weight: 47.4 lbs Input Voltage: AC 120 V Output Voltage: AC 110/115/120/127 V ± 1.5% Power Capacity: 1800 Watt / 2000 VA Input Connectors: 1 x power NEMA 5-20P Output connectors: 8 x power NEMA 5-20R Battery: - 9 Ah Batteries Qty: 4 Run Time (Up To): 4 min at full load Networking: RS-232, USB Color: Black Dimensions (WxDxH): 17.2 in x 20.1 in x 3.5 in - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Color: Black - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 81 - 145 V Frequency Provided: 50/60 Hz ± 1Hz Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-20P Power Output Connectors Details: 8 x power NEMA 5-20R Output Voltage: AC 110/115/120/127 V ± 1.5% - 50/60 Hz Power Capacity: 1800 Watt / 2000 VA Dataline Surge Protection: Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line Output Waveform: Sinewave Efficiency: 90% Battery mode, 95% AC mode, 93% Buck and Boost mode Power Factor (PF): 0.9 - Battery
Quantity: 4 Voltage Provided: 12 V Capacity: 9 Ah Run Time (Up To): 4 min at full load ¦ 12 min at half load Recharge Time: 4 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 5.5 ft Features: LCD display, Automatic Voltage Regulation (AVR), programmable outlet bank Compliant Standards: UL, UL 1778, FCC, RoHS, IC Class A - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 90% (non-condensing) Sound Emission: 45 dBA - Dimensions & Weight
Width: 17.2 in Depth: 20.1 in Height: 3.5 in Weight: 47.4 lbs - Dimensions & Weight (Shipping)
Shipping Weight: 52.69 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121017 |
| Part# | MAA-UPS-LL-2000RT |
| MFG Part# | UPS-LL-2000RT |
| UPC | 656747364549 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Color | Black |
| Efficiency | 90% Battery mode, 93% Buck and Boost mode, 95% AC mode |
