MILESTONE LG OL UPS 1.5KVA 120V 6752563
SKU
6752563
Category: UPS
- Primary Information

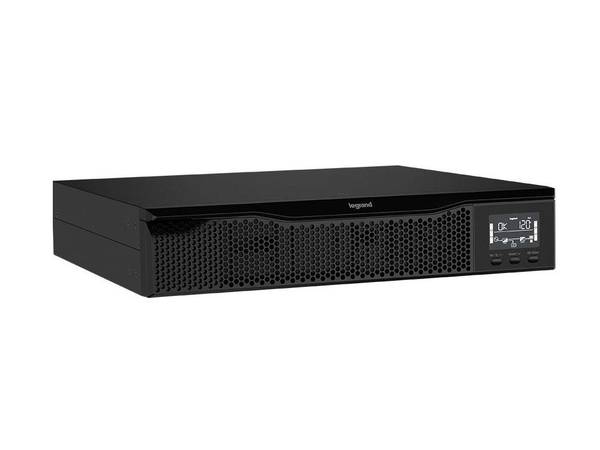

Product Description: Middle Atlantic - UPS - double conversion online - 1500 Watt - 1500 VA Device Type: UPS - rack-mountable / external Rack Size: 2U Weight: 34.17 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 100/110/115/120/127 V ± 1% Power Capacity: 1500 Watt / 1500 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 8 x power NEMA 5-15R Battery: - 9 Ah Batteries Qty: 3 Run Time (Up To): 3 min at full load Networking: Ethernet, RS-232, USB Color: Black Dimensions (WxDxH): 17.2 in x 16 in x 3.5 in - General
Device Type: UPS - rack-mountable / external Height (Rack Units): 2U Color: Black - Power Device
UPS Technology: On-line Input Voltage: AC 120 V Input Voltage Range: AC 55 - 150 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 40 - 70 Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 8 x power NEMA 5-15R Output Voltage: AC 100/110/115/120/127 V ± 1% - 50/60 Hz Power Capacity: 1500 Watt / 1500 VA Dataline Surge Protection: Network/phone line - RJ-45/RJ-11 Output Waveform: Sinewave Efficiency: 89% at 100% Load, 88% Battery mode, 96% Eco mode Power Factor (PF): 0.99 - Battery
Quantity: 3 Voltage Provided: 12 V Capacity: 9 Ah Run Time (Up To): 3 min at full load ¦ 10 min at half load Recharge Time: 3 hours Transfer Time: 0 ms Features: Sealed, hot-swappable - Networking
Remote Management Interface: Ethernet, RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 5.5 ft Rack Mounting Kit: Included Features: Indoor use, audible alarm, LCD display, internal bypass, Automatic Voltage Regulation (AVR), Eco-Mode, grounded, double conversion, wide input voltage range, programmable outlet bank, fault alarm Compliant Standards: UL, FCC, cULus - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 20 - 95% RH (non-condensing) Sound Emission: 50 dBA - Dimensions & Weight
Width: 17.2 in Depth: 16 in Height: 3.5 in Weight: 34.17 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121011 |
| Part# | MAA-UPS-LO-1500RT |
| MFG Part# | UPS-LO-1500RT |
| UPC | 656747364471 |
| Device Type | UPS - rack-mountable / external |
| UPS Technology | On-line |
| Color | Black |
| Efficiency | 88% Battery mode, 89% at 100% Load, 96% Eco mode |
