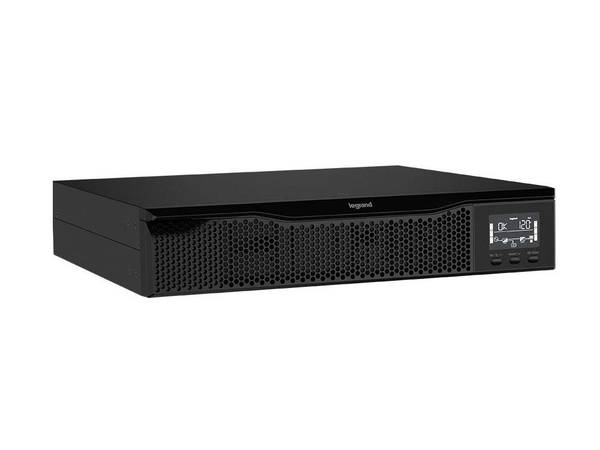

MILESTONE LG OL UPS 3.0KVA 120V 6752565
SKU
6752565
Category: UPS
- Primary Information
Product Description: Middle Atlantic - UPS - double conversion online - 3000 Watt - 3000 VA Device Type: UPS - rack-mountable / external Rack Size: 2U Weight: 60.63 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 100/110/115/120/127 V ± 1% Power Capacity: 3000 Watt / 3000 VA Input Connectors: 1 x power NEMA L5-30P Output connectors: 8 x power NEMA 5-20R ¦ 1 x power NEMA L5-30R Battery: - 9 Ah Batteries Qty: 6 Run Time (Up To): 3 min at full load Networking: RS-232, USB Color: Black System Requirements: UNIX, Apple MacOS, Linux, Microsoft Windows 2000 / XP / 2003 / Vista / 7 / 8 / 10 Dimensions (WxDxH): 17.2 in x 24.8 in x 3.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable / external Height (Rack Units): 2U Color: Black - Power Device
UPS Technology: On-line Input Voltage: AC 120 V Input Voltage Range: AC 55 - 150 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 40 - 70 Hz Input Connectors: 1 x power NEMA L5-30P Power Output Connectors Details: 8 x power NEMA 5-20R ¦ 1 x power NEMA L5-30R Output Voltage: AC 100/110/115/120/127 V ± 1% - 50/60 Hz Power Capacity: 3000 Watt / 3000 VA Dataline Surge Protection: Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line Output Waveform: Sinewave Efficiency: 90% Battery mode, 91% AC mode, 91% Eco mode Power Factor (PF): 0.99 - Battery
Quantity: 6 Voltage Provided: 12 V Capacity: 9 Ah Run Time (Up To): 3 min at full load ¦ 10 min at half load Recharge Time: 3 hours Transfer Time: 4 ms - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 5.5 ft Rack Mounting Kit: Included Features: 4 programmable sockets, double conversion Compliant Standards: FCC Class A certified, UL 1778, FCC, IC Class A, cTUVus - Software / System Requirements
OS Required: UNIX, Apple MacOS, Linux, Microsoft Windows 2000 / XP / 2003 / Vista / 7 / 8 / 10 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 20 - 95% RH (non-condensing) Sound Emission: 50 dBA - Dimensions & Weight
Width: 17.2 in Depth: 24.8 in Height: 3.5 in Weight: 60.63 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121011 |
| Part# | MAA-UPS-LO-3000RT |
| MFG Part# | UPS-LO-3000RT |
| UPC | 656747364495 |
| Device Type | UPS - rack-mountable / external |
| UPS Technology | On-line |
| Color | Black |
| Efficiency | 90% Battery mode, 91% AC mode, 91% Eco mode |
