MILESTONE MIDDLE ATLANTIC M 0U 24A 208V 36 C13 6 C19 L6-30P 6901226
SKU
6901226
- Primary Information

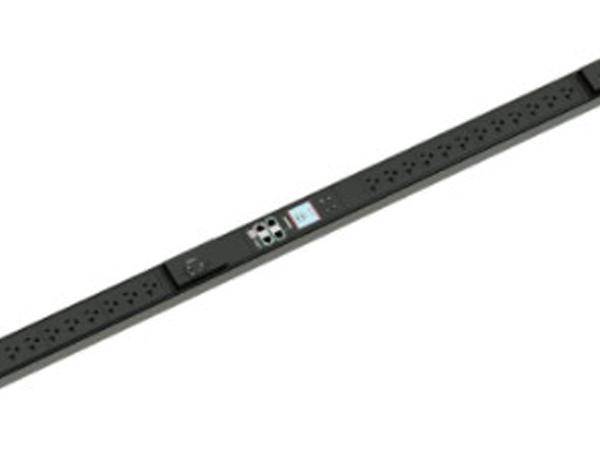

Product Description: Legrand Rack PDU, Network Metered, ZeroU, 24A, 208V, (36) C13 &(6) C19, L6-30P Cord - power distribution unit - 5800 VA Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 12.43 lbs Input Wiring: 1-phase 3 Wire Input Voltage: AC 208 V Output Voltage: AC 208 V Power Capacity: 5800 VA Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V Input Connectors: 1 x power NEMA L6-30P Output connectors: 36 x power IEC 60320 C13 12 A ¦ 6 x power IEC 60320 C19 16 A Networking: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP Color: Black, silver Dimensions (WxDxH): 2.3 in x 2 in x 60.6 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft Color: Black, silver - Power Device
Input Voltage: AC 208 V Input Voltage Range: AC 200 - 240 V Input Wiring: 1-phase 3 Wire Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L6-30P Power Output Connectors Details: 36 x power IEC 60320 C13 12 A ¦ 6 x power IEC 60320 C19 16 A Output Voltage: AC 208 V Max Electric Current: 30 A Power Capacity: 5800 VA Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V - Networking
Remote Management Interface: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP - Expansion / Connectivity
Interfaces: 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ Management (RS-232) ¦ 1 x USB - 4 pin USB Type B - Miscellaneous
Cables Included: Power cable 10 ft Features: Splash-resistant, bottom-front feed, LCD display, current meter, vertical orientation, horizontal orientation, active power meter, real power meter, energy meter, power factor meter, monitored, load monitoring, user defined notifications, rotatable cord, Hydraulic-Magnetic breakers, voltage meter, environmental sensor ready, 2 x LEJBXA66 overload protection Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21 - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Max Operating Temperature: 113 °F Humidity Range Operating: 85% - Dimensions & Weight
Width: 2.3 in Depth: 2 in Height: 60.6 in Weight: 12.43 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121017 |
| Part# | MAA-LP-42300 |
| MFG Part# | LP-42300 |
| UPC | 662875015253 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black, silver |
| Remote Management Protocol | HTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet |
