MILESTONE MIDDLE ATLANTIC SW 1U 16A 208V 8 C13 L6-20P 6901235

SKU
6901235
CA$1,239.65
  • Primary Information

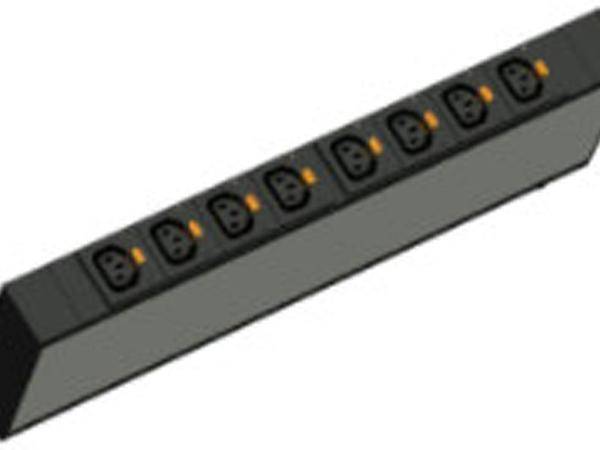

    Product Description: Legrand Rack PDU, Network Switched, 1U, 16A, 208V, (8) C13, L6-20P Cord - power distribution unit - 3800 VA
    Device Type: Power distribution unit - rack-mountable
    Cord Length: 10 ft
    Rack Size: 1U
    Input Wiring: 1-phase 3 Wire
    Input Voltage: AC 208 V
    Output Voltage: AC 208 V
    Power Capacity: 3800 VA
    Power Capacity Details: 3.2 kVA at 200 V, 3.8 kVA at 240 V
    Input Connectors: 1 x power NEMA L6-20P
    Output connectors: 8 x power IEC 60320 C13 12 A
    Networking: Ethernet 10/100, RS-232
    Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
    Color: Black, silver
    Dimensions (WxDxH): 17.2 in x 5.2 in x 1.7 in
    Manufacturer Warranty: 2-year warranty
  • General
    Device Type: Power distribution unit - rack-mountable
    Height (Rack Units): 1U
    Cord Length: 10 ft
    Color: Black, silver
  • Power Device
    Input Voltage: AC 208 V
    Input Voltage Range: AC 200 - 240 V
    Input Wiring: 1-phase 3 Wire
    Frequency Required: 50/60 Hz
    Input Connectors: 1 x power NEMA L6-20P
    Power Output Connectors Details: 8 x power IEC 60320 C13 12 A
    Output Voltage: AC 208 V
    Max Electric Current: 20 A
    Power Capacity: 3800 VA
    Power Capacity Details: 3.2 kVA at 200 V, 3.8 kVA at 240 V
  • Networking
    Remote Management Interface: Ethernet 10/100, RS-232
    Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
  • Expansion / Connectivity
    Interfaces: 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ Management (RS-232) ¦ 1 x USB - 4 pin USB Type B
  • Miscellaneous
    Cables Included: Power cable 10 ft
    Features: Splash-resistant, rear feed, LCD display, current meter, horizontal orientation, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, monitored, locking C13 connector, rotatable cord, Hydraulic-Magnetic breakers, voltage meter, environmental sensor ready, delayed power sequencing, outlet use management, advanced load monitoring
    Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21
  • Manufacturer Warranty
    Service & Support: Limited warranty - 2 years
  • Environmental Parameters
    Max Operating Temperature: 113 °F
    Humidity Range Operating: 85%
  • Dimensions & Weight
    Width: 17.2 in
    Depth: 5.2 in
    Height: 1.7 in
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 39121017
BRANDSMIDDLE ATLANTIC
UNSPSC39121017
Part#MAA-LP-62211
MFG Part#LP-62211
UPC662875019909
Device TypePower distribution unit - rack-mountable
ColorBlack, silver
Remote Management ProtocolHTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet
