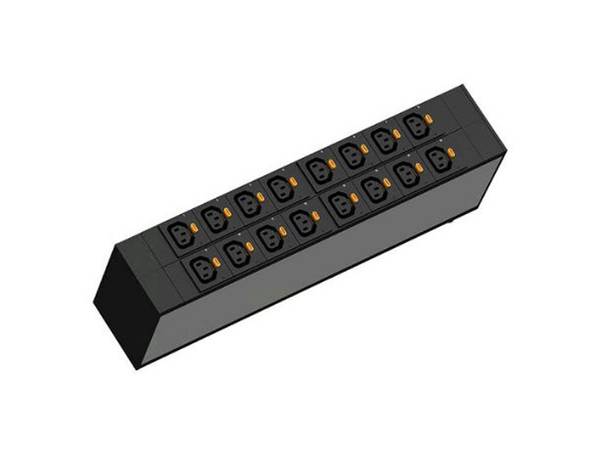

Product Description: | Legrand Rack PDU, Network Switched, 2U, 24A, 208V, (16) C13, L6-30P Cord - power distribution unit - 5800 VA |
Device Type: | Power distribution unit - rack-mountable |
Cord Length: | 10 ft |
Rack Size: | 2U |
Weight: | 10.71 lbs |
Input Wiring: | 1-phase 3 Wire |
Input Voltage: | AC 208 V |
Output Voltage: | AC 208 V |
Power Capacity: | 5800 VA |
Power Capacity Details: | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
Input Connectors: | 1 x power NEMA L6-30P |
Output connectors: | 16 x power IEC 60320 C13 12 A |
Networking: | Ethernet 10/100, RS-232 |
Remote Management Protocol: | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP |
Color: | Black, silver |
Dimensions (WxDxH): | 17.2 in x 5.2 in x 3.5 in |
Manufacturer Warranty: | 2-year warranty |
Device Type: | Power distribution unit - rack-mountable |
Height (Rack Units): | 2U |
Cord Length: | 10 ft |
Color: | Black, silver |
Input Voltage: | AC 208 V |
Input Voltage Range: | AC 200 - 240 V |
Input Wiring: | 1-phase 3 Wire |
Frequency Required: | 50/60 Hz |
Input Connectors: | 1 x power NEMA L6-30P |
Power Output Connectors Details: | 16 x power IEC 60320 C13 12 A |
Output Voltage: | AC 208 V |
Max Electric Current: | 30 A |
Power Capacity: | 5800 VA |
Power Capacity Details: | 4.8 kVA at 200 V, 5.8 kVA at 240 V |
Circuit Protection: | Circuit breaker |
Remote Management Interface: | Ethernet 10/100, RS-232 |
Remote Management Protocol: | SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP |
Interfaces: | 2 x management (Fast Ethernet) - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ Management (RS-232) ¦ 1 x USB - 4 pin USB Type B |
Cables Included: | Power cable 10 ft |
Features: | Splash-resistant, rear feed, LCD display, current meter, horizontal orientation, active power meter, real power meter, energy meter, power factor meter, remote outlet switching, monitored, locking C13 connector, rotatable cord, Hydraulic-Magnetic breakers, voltage meter, environmental sensor ready, 2 x 20 A circuit breakers, delayed power sequencing, outlet use management, advanced load monitoring, 2 x LEJBX66 overload protection |
Compliant Standards: | UL, ICES-003, RoHS, FCC Part 15 A, IP44, IEC 62053-21 |
Service & Support: | Limited warranty - 2 years |
Max Operating Temperature: | 113 °F |
Humidity Range Operating: | 85% |
Width: | 17.2 in |
Depth: | 5.2 in |
Height: | 3.5 in |
Weight: | 10.71 lbs |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 39121017 |
BRANDS | MIDDLE ATLANTIC |
---|---|
UNSPSC | 39121017 |
Part# | MAA-LP-62320 |
MFG Part# | LP-62320 |
UPC | 662875015413 |
Device Type | Power distribution unit - rack-mountable |
Color | Black, silver |
Circuit Protection | Circuit breaker |
Remote Management Protocol | HTTP, HTTPS, JSON-RPC, SMTP, SNMP 2, SNMP 3, SSH, Telnet |
