MILESTONE PWR DIST 15A RKMNT PWR SWT 6477582
SKU
6477582
Category: Power Distribution Units
- Primary Information

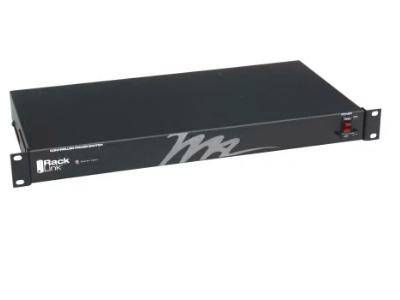

Product Description: Middle Atlantic RackLink Power Management System - power control unit - 15A, basic surge Device Type: Power control unit - rack-mountable Rack Size: 1U Input Voltage: AC 120 V Input Connectors: 1 x power NEMA 5-15P Output connectors: 7 x power NEMA 5-15R Networking: Ethernet 10/100, RS-232 Remote Management Protocol: HTTP, TCP/IP Color: Black powder coat Dimensions (WxDxH): 19.3 in x 9 in x 1.8 in Manufacturer Warranty: 3-year warranty - General
Device Type: Power control unit - rack-mountable Height (Rack Units): 1U Color: Black powder coat - Power Device
Input Voltage: AC 120 V Input Voltage Range: AC 80 - 140 V Frequency Required: 60 Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 7 x power NEMA 5-15R Surge Suppression: Yes Surge Response Time: 1 ns Surge Energy Rating: 160 Joules EMI/RFI Noise Filtration: 20 dB Max Spike Current: 30000 A - Networking
Remote Management Interface: Ethernet 10/100, RS-232 Remote Management Protocol: HTTP, TCP/IP - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Fast Ethernet) - RJ-45 - Miscellaneous
Cables Included: Power cable 9 ft Features: E-mail notification, integrated web server, thermal protection, SignalSAFE Compliant Standards: UL 60950-1, CSA C22.2 No. 60950-1 - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 140 °F Humidity Range Operating: 0 - 95% RH (non-condensing) - Dimensions & Weight
Width: 19.3 in Depth: 9 in Height: 1.8 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121017 |
| Part# | MAA-RLNK-SW715R-NS |
| MFG Part# | RLNK-SW715R-NS |
| UPC | 656747179242 |
| Device Type | Power control unit - rack-mountable |
| Surge Suppression | Yes |
| Color | Black powder coat |
| Remote Management Protocol | HTTP, TCP/IP |
