MILESTONE PWR DIST 20A INLINE PWR MNTR 6477576

SKU
6477576
CA$750.67
PWR DIST 20A INLINE PWR MNTR





buy now pay later
  • Primary Information

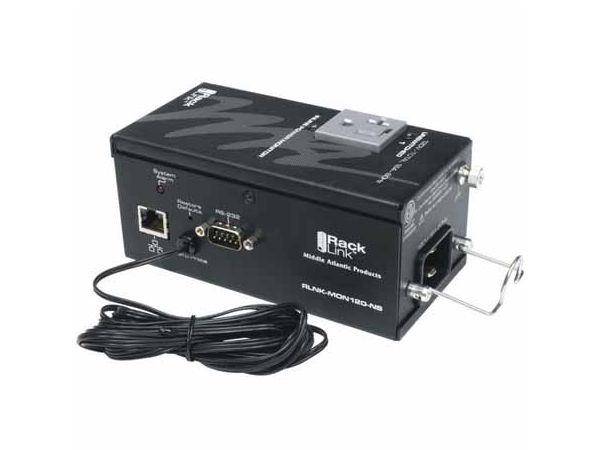

    Product Description: Middle Atlantic RackLink Power Management System RLNK-MON120-NS - power monitoring unit
    Device Type: Power monitoring unit - external
    Input Voltage: AC 120 V
    Input Connectors: Power IEC 60320 C20
    Networking: Ethernet 10/100, RS-232
    Remote Management Protocol: HTTP
    Color: Black powder coat
    Dimensions (WxDxH): 3 in x 2.5 in x 6 in
    Manufacturer Warranty: 3-year warranty
  • General
    Device Type: Power monitoring unit - external
    Color: Black powder coat
  • Power Device
    Input Voltage: AC 120 V
    Input Voltage Range: AC 80 - 140 V
    Input Connectors: Power IEC 60320 C20
    Max Electric Current: 20 A
    Surge Suppression: Yes
    Surge Response Time: 1 ns
    Surge Energy Rating: 160 Joules
    EMI/RFI Noise Filtration: 20 dB
    Max Spike Current: 30000 A
  • Networking
    Remote Management Interface: Ethernet 10/100, RS-232
    Remote Management Protocol: HTTP
  • Expansion / Connectivity
    Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Ethernet) - RJ-45
  • Miscellaneous
    Cables Included: Power cable 3 ft
    Features: Overvoltage protection, overload protection, undervoltage protection, email alerts support, thermal protection
    Compliant Standards: ISO 9001, RoHS, UL 60950-1, GREENGUARD, Directive 2002/95/EC
  • Manufacturer Warranty
    Service & Support: Limited warranty - 3 years
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 140 °F
    Humidity Range Operating: 0 - 95% (non-condensing)
  • Dimensions & Weight
    Width: 3 in
    Depth: 2.5 in
    Height: 6 in
  • Dimensions & Weight (Shipping)
    Shipping Width: 3.1 in
    Shipping Depth: 2.9 in
    Shipping Height: 7.4 in
    Shipping Weight: 3.51 lbs
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 39121017
BRANDSMIDDLE ATLANTIC
UNSPSC39121017
Part#MAA-RLNK-MON120-NS
MFG Part#RLNK-MON120-NS
UPC656747179204
Device TypePower monitoring unit - external
Surge SuppressionYes
ColorBlack powder coat
Remote Management ProtocolHTTP
