MILESTONE PWR DIST 20A RM SERS SRGSEQ 6478909
SKU
6478909
Category: Power Distribution Units
- Primary Information

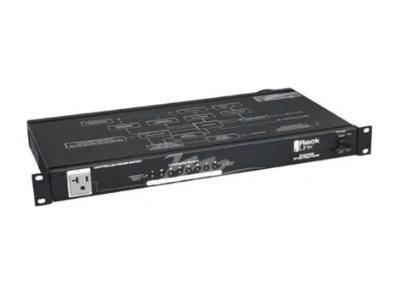

Product Description: Middle Atlantic RackLink Power Management System RLNK-SW820R-SP - power control unit Device Type: Power control unit - rack-mountable Rack Size: 1U Weight: 10.8 lbs Input Voltage: AC 120 V Input Connectors: Power NEMA 5-20 Output connectors: 8 x power NEMA 5-20 (surge) Networking: Ethernet 10/100, RS-232 Remote Management Protocol: HTTP Color: Black powder coat Dimensions (WxDxH): 19 in x 9.7 in x 1.7 in Manufacturer Warranty: 12-year warranty - General
Device Type: Power control unit - rack-mountable Height (Rack Units): 1U Color: Black powder coat - Power Device
Input Voltage: AC 120 V Input Connectors: Power NEMA 5-20 Power Output Connectors Details: 8 x power NEMA 5-20 (surge) Surge Suppression: Yes Surge Response Time: 1 ns Surge Energy Rating: 711 Joules EMI/RFI Noise Filtration: 50 dB Max Spike Current: 30000 A - Networking
Remote Management Interface: Ethernet 10/100, RS-232 Remote Management Protocol: HTTP - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (Fast Ethernet) - RJ-45 - Miscellaneous
Cables Included: Power cable 9 ft Features: E-mail notification, temperature auto control, thermal protection Compliant Standards: Plug and Play, CSA, RoHS, ETL, UL 60950-1, GREENGUARD - Manufacturer Warranty
Service & Support: Limited warranty - 12 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 140 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 19 in Depth: 9.7 in Height: 1.7 in Weight: 10.8 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | MIDDLE ATLANTIC |
|---|---|
| UNSPSC | 39121017 |
| Part# | MAA-RLNK-SW820R-SP |
| MFG Part# | RLNK-SW820R-SP |
| UPC | 656747195495 |
| Device Type | Power control unit - rack-mountable |
| Surge Suppression | Yes |
| Color | Black powder coat |
| Remote Management Protocol | HTTP |
