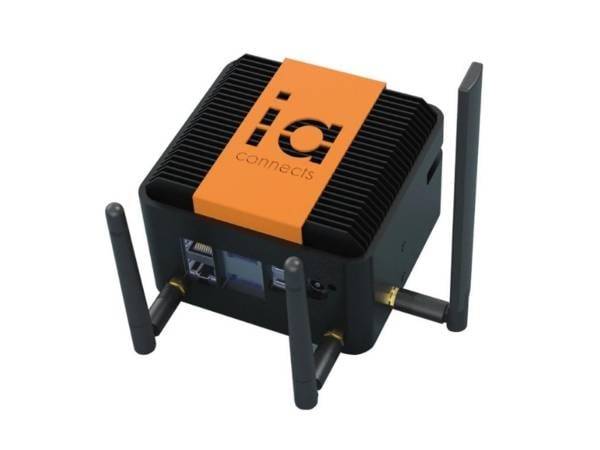

MOBIUSFLOW EDGE GATEWAY WITH INTEL CPU, LTE AND WIFI 7384517
SKU
7384517
Category: Network Devices
- Primary Information
Product Description: IAconnects MobiusFlow Edge Gateway - gateway - 802.11a/b/g/n/ac - 4G Product Type: Gateway Power Source: Power adapter Max Supported Devices: 1000 Connectivity: Wireless, wired - 802.11a/b/g/n/ac - Gigabit Ethernet - Cellular - 4G Dimensions (WxDxH): 3.9 in x 4.1 in x 2.7 in - General
Product Type: Gateway Power Source: Power adapter Max Supported Devices: 1000 Connectivity Technology: Wireless, wired - Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Cellular Network Supported: LTE Generation: 4G OS Required: Linux, Android, Ubuntu, Windows 10, Yocto Linux Interfaces Details: HDMI ¦ DisplayPort 1.2 ¦ 2 x USB 2.0 ¦ 3 x USB 3.0 ¦ Micro-USB 3.0 Type B ¦ 2 x Gigabit Ethernet Features: Real-Time Clock (RTC), Quad Core Processor, fanless, 4K60Hz support, SATA 3.0 HDD interface, M.2 2230 E key expansion slot, mPCIe expansion slot, 40-pin GP-Bus wake on LAN (WOL), PXE support, UEFI support, Watch Dog Timer (WDT), MQTT support, Intel FPGA Altera MAX 10 - Control Unit
Operating System: Ubuntu 16.04 - Internet of Things (IoT)
Internet of Things (IoT) Compatible: Yes Communications Type: Cloud - Processor
CPU: Atom x7 E3950 Manufacturer: Intel Clock Speed: 2 GHz - RAM
Installed Size: 8 GB - Flash Memory
Installed Size: 64 GB - Miscellaneous
Voltage Required: DC 5 V Rated Current: 6 A Power Consumption Operational: 18 Watt Compliant Standards: FCC Class A certified, FCC Part 15 B, ICES-003 issue 6, RED 2014/53/EU - Dimensions & Weight
Width: 3.9 in Depth: 4.1 in Height: 2.7 in - Dimensions & Weight (Shipping)
Shipping Width: 9.1 in Shipping Depth: 8.9 in Shipping Height: 0.4 in - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 0 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222605
| BRANDS | IACONNECTS TECHNOLOGY |
|---|---|
| UNSPSC | 43222605 |
| Part# | IAC-GW001 |
| MFG Part# | GW001 |
| Connectivity Technology | Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, wired - Ethernet, Wireless |
| Product Type | Gateway |
| Operating System | Ubuntu 16.04 |
