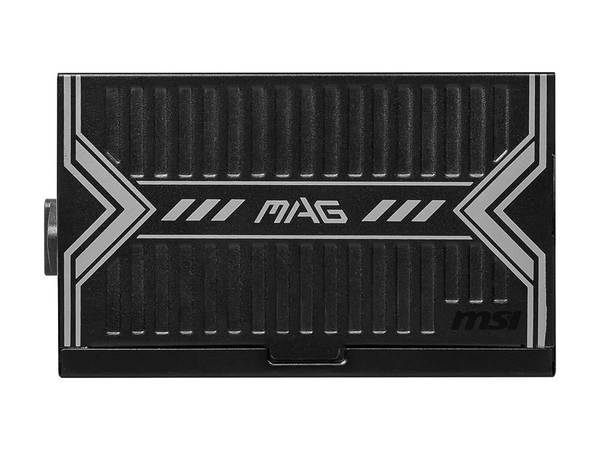

MSI MAG A550BN, USA, 550W, NON-MODULAR, BRONZE 80 PLUS, COLOR BOX, SOLID WOOD PALLET PACKING 7377309
SKU
7377309
CA$123.28
MSI MAG A550BN, USA, 550W, NON-MODULAR, BRONZE 80 PLUS, COLOR BOX, SOLID WOOD PALLET PACKING
Category: Power Supplies
- Primary Information
Product Description: MSI MAG A550BN - power supply - 550 Watt Device Type: Power supply - active Power Factor Correction (PFC) - internal Specification Compliance: ATX12V / EPS12V 80 PLUS Certification: 80 PLUS Bronze Weight: 3.51 lbs Input Voltage: AC 100-240 V Output Voltage: +3.3, +5, ±12 V Power Capacity: 550 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12V - 45.5 A Output connectors: 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 pin internal power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 pin mini-power connector Cooling System: 120 mm fan Dimensions (WxDxH): 5.9 in x 5.5 in x 3.4 in Manufacturer Warranty: 5-year warranty - General
Device Type: Power supply - active Power Factor Correction (PFC) - internal Specification Compliance: ATX12V / EPS12V PSU Form Factor: ATX - Power Device
Input Voltage: AC 100-240 V Frequency Required: 50 - 60 Hz Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 5 x 15 pin Serial ATA power ¦ 2 x 4 pin internal power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 1 x 4 pin mini-power connector Output Voltage: +3.3, +5, ±12 V Power Capacity: 550 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A ¦ +12V - 45.5 A Efficiency: 85% 80 PLUS Certification: 80 PLUS Bronze - Miscellaneous
Cooling System: 120 mm fan Features: Overpower protection, overvoltage protection, overcurrent protection, short-circuit protection, overheat protection, DC-DC technology, single 12V rail, non-modular - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Dimensions & Weight
Width: 5.9 in Depth: 5.5 in Height: 3.4 in Weight: 3.51 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121004
| BRANDS | MSI COMPUTER (USA) |
|---|---|
| UNSPSC | 39121004 |
| Part# | MSI-MAGA550BN |
| MFG Part# | MAGA550BN |
| UPC | 824142258392 |
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| 80 PLUS Certification | 80 PLUS Bronze |
| Efficiency | 85% |
