MSI PRO H610M-G DDR4 MATX MOTHERBOARD DDR4 6856712
SKU
6856712
CA$113.68

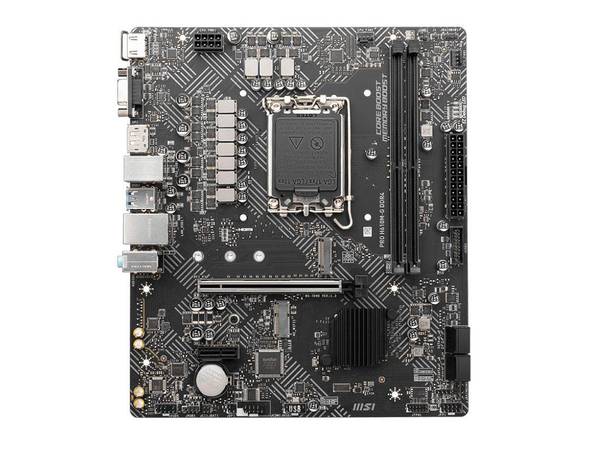

MSI PRO H610M-G DDR4 MATX Motherboard DDR4, Socket 1700 ,Supports 12th Gen Intel Core Processors, Pentium Gold and Celeron Processors,35W, Intel I219V
Category: Motherboards
- Primary Information
Product Description: MSI PRO H610M-G DDR4 - motherboard - micro ATX - LGA1700 Socket - H610 Product Type: Motherboard - micro ATX Chipset Type: Intel H610 Processor Socket: 1 x LGA1700 Socket Compatible Processors: (supports 12th Generation Intel Core / Pentium / Celeron) Max RAM Size: 64 GB RAM Supported: 2 DIMM slots - DDR4, non-ECC, unbuffered Storage Ports: 4 x SATA-600, 1 x M.2 USB / FireWire Ports: 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (2 x USB 3.2 Gen 1 + 2 x USB 2.0 via headers) Audio: HD Audio (8-channel) LAN: Gigabit Ethernet Manufacturer Warranty: 3-year warranty - General
Product Type: Motherboard - micro ATX Chipset Type: Intel H610 Processor Socket: LGA1700 Socket Max Processors Qty: 1 Compatible Processors: (supports 12th Generation Intel Core / Pentium / Celeron) - Supported RAM
Max Size: 64 GB Technology: DDR4 Bus Clock: 2133 MHz, 2666 MHz, 3200 MHz Supported RAM Integrity Check: Non-ECC Registered or Buffered: Unbuffered Features: Dual channel memory architecture - Audio
Type: HD Audio (8-channel) Audio Codec: Realtek ALC892/ALC897 Compliant Standards: High Definition Audio - LAN
Network Controller: Intel I219V Network Interfaces: Gigabit Ethernet - Expansion / Connectivity
Expansion Slots: 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (for wireless module) ¦ 1 x PCIe 3.0 x1 Storage Interfaces: SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 RAID Features: Intel Smart Response Technology Interfaces: 1 x HDMI ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) Internal Interfaces: 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x audio - header Power Connectors: 24-pin main power connector, 8-pin ATX12V connector - Features
BIOS Features: MSI ClickBIOS 5 Hardware Features: MSI Audio Boost, Debug LED, MSI Steel Armor, Double ESD Protection, MSI Core Boost - Miscellaneous
Included Accessories: I/O back plate, case badge, M.2 clip Cables Included: 2 x Serial ATA cable Compliant Standards: DisplayPort 1.4 Width: 9.3 in Depth: 8 in - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201513
| BRANDS | MSI COMPUTER (USA) |
|---|---|
| UNSPSC | 43201513 |
| Part# | MSI-PROH610MGD4 |
| MFG Part# | PROH610MGD4 |
| UPC | 824142278789 |
| Product Type | Motherboard - micro ATX |
| Type | HD Audio (8-channel) |
| Network Controller | Intel I219V |
