NC/NR NVIDIA QUANTUM 2 11842364
SKU
11842364
CA$56,169.13
Switch - MQM9790-NS2F - Rackmount - Wired - 400Gbps - Gigabit Ethernet - Core i3 - 200-240Vac
Category: Hubs & Switches
- Primary Information

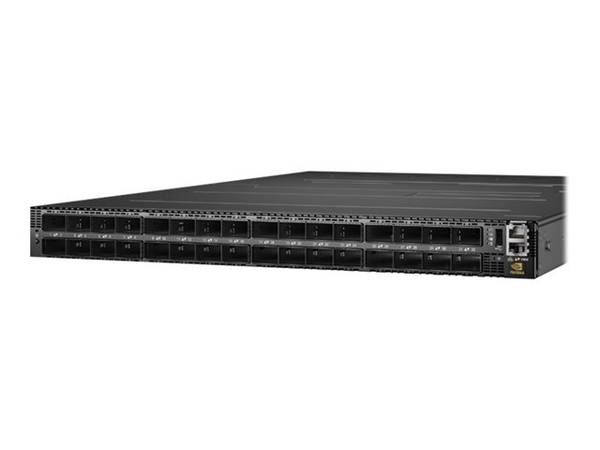

Product Description: Mellanox Quantum QM9790 - switch - 64 ports - smart - rack-mountable Device Type: Switch - 64 ports - smart Enclosure Type: Back to front airflow rack-mountable 1U Subtype: InfiniBand Ports: 64 x NDR InfiniBand Performance: Throughput: 51.2 Tbps ¦ Bandwidth per port: 400 Gbps ¦ Switching capacity: 66.5 Bpps Features: QoS, RDMA support, VL2VL mapping, NVIDIA SHARPv3 technology Power: AC 220-240 V Power Redundancy: Yes Dimensions (WxDxH): 17.2 in x 26 in x 1.7 in Weight: 31.97 lbs Manufacturer Warranty: 1-year warranty - General
Device Type: Switch - 64 ports - smart Enclosure Type: Back to front airflow rack-mountable 1U Subtype: InfiniBand Ports: 64 x NDR InfiniBand Performance: Throughput: 51.2 Tbps ¦ Bandwidth per port: 400 Gbps ¦ Switching capacity: 66.5 Bpps Features: QoS, RDMA support, VL2VL mapping, NVIDIA SHARPv3 technology Processor: 1 x Intel Core i3 RAM: 8 GB - SO-DIMM 260-pin - DDR4 SDRAM Built-in Devices: 16 GB SSD - Expansion / Connectivity
Interfaces: 32 x NDR InfiniBand OSFP ¦ 1 x USB 3.0 - Power
Power Device: Internal power supply - hot-plug Installed Qty: 2 Power Redundancy: Yes Power Redundancy Scheme: 1+1 Voltage Required: AC 220-240 V Power Consumption Operational: 1720 Watt 80 PLUS Certification: 80 PLUS Gold - Miscellaneous
Compliant Standards: VCCI, FCC, ICES, RCM - Software / System Requirements
Software Included: NVIDIA MLNX-OS - Dimensions & Weight
Width: 17.2 in Depth: 26 in Height: 1.7 in Weight: 31.97 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 85% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 10 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | NVIDIA |
|---|---|
| UNSPSC | 43222612 |
| Part# | MNX-MQM9790-NS2F |
| MFG Part# | MQM9790-NS2F |
| Device Type | Switch - 64 ports - smart |
| 80 PLUS Certification | 80 PLUS Gold |
| Enclosure Type | Back to front airflow rack-mountable 1U |
