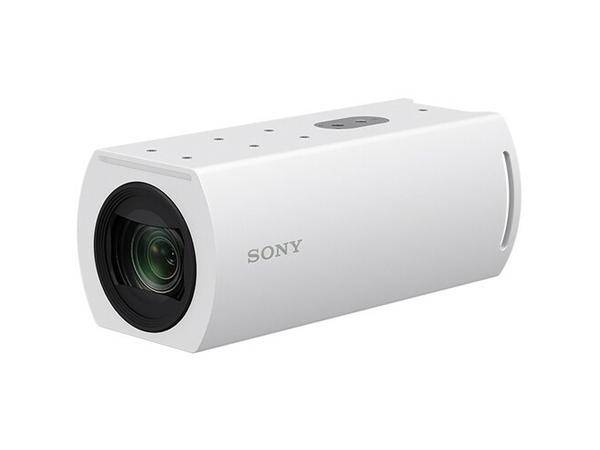

Product Description: | Sony SRG-XB25 - conference camera - bullet - with NDI|HX license |
Device Type: | Conference camera - fixed - bullet |
Bundled with: | NDI|HX license |
Audio: | Yes |
Camera Mount Type: | Wall mount, ceiling mount, tripod mount |
Dimensions (WxDxH): | 3.2 in x 7 in x 2.8 in |
Weight: | 30.68 oz |
Color: | White |
Connectivity Technology: | Wired |
Camera: | Color - Day&Night |
Optical Zoom: | 25 x |
Max Resolution: | 3840 x 2160 |
Frame Rate (max): | 60 frames per second |
Video Modes: | 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 2160/25p, 2160/29.97p, 2160/50p, 2160/59.94p, 360/25p, 360/30p, 360/50p, 360/60p, 480/60p, 720/25p, 720/30p, 720/50p, 720/59.94p |
Optical Sensor Type: | Exmor R CMOS - 1/2.5" - 8.5 MP |
Minimum Illumination: | 0.5 lux - 50 IRE |
Focal Length Control: | Motorized zoom |
Focal Length: | 4.8 mm - 120 mm |
Focus Adjustment: | Automatic, manual (min distance 59.1 in) |
Lens Iris: | F/1.6-3.4 |
Interfaces: | HDMI, NDI|HX |
Control Interface: | VISCA |
Voltage: | AC 100-240 V, DC 12 V / PoE |
Features: | 256 preset positions, image flip, tally light, Flicker Cancel |
Environmental Parameters (operating): | 32 °F - 104 °F |
Device Type: | Conference camera |
Audio Support: | Yes |
Audio Formats: | ACC |
Form Factor: | Bullet |
Camera Mount Type: | Wall mount, ceiling mount, tripod mount |
Connectivity Technology: | Wired |
Width: | 3.2 in |
Depth: | 7 in |
Height: | 2.8 in |
Weight: | 30.68 oz |
Bundled with: | NDI|HX license |
Type: | Color - Day&Night - fixed |
Digital Video Format: | H.264, H.265 |
Max Digital Video Resolution: | 3840 x 2160 |
Video Modes: | 1080/25p, 1080/30p, 1080/50i, 1080/50p, 1080/59.94i, 1080/59.94p, 2160/25p, 2160/29.97p, 2160/50p, 2160/59.94p, 360/25p, 360/30p, 360/50p, 360/60p, 480/60p, 720/25p, 720/30p, 720/50p, 720/59.94p |
Digital Zoom: | 6 |
Exposure Range: | 1/1 sec - 1/10000 sec |
Minimum Illumination: | 0.5 lux - 50 IRE |
Digital Video Capture Resolution: | 3840 x 2160 |
Frame Rate (max): | 60 frames per second |
Features: | 256 preset positions, image flip, tally light, Flicker Cancel |
Type: | 8.5 MP Exmor R CMOS 1/2.5" |
Type: | Motorized zoom |
Optical Zoom: | 25 x |
Focal Length: | 4.8 mm - 120 mm |
Lens Iris: | F/1.6-3.4 |
Focus Adjustment: | Automatic, manual |
Min Focus Distance: | 59.1 in |
Horizontal Field of View (degree): | 68 |
Video: | HDMI, NDI|HX |
Network Protocols: | RTMP, RTSP, NDI HX, CGI, SRT, NTP, IPv4, HTTP, UPnP, DHCP, DNS |
Control Interface: | VISCA |
Ports: | HDMI output - HDMI Type A ¦ LAN/power - RJ-45 ¦ Audio line out - 3.5 mm jack ¦ Audio line-in/microphone - 3.5 mm jack ¦ VISCA input - 8 pin mini-DIN ¦ VISCA output - 8 pin mini-DIN |
Included Accessories: | Power adapter, remote control, wire rope, screw M3x8, screw M2.6x6, HDMI cable fixing plate |
Compliant Standards: | IEEE 802.3af, IEC 60130-10, JEIDA |
Color: | White |
Power Requirements: | DC 12 V / PoE |
Power Device: | Power adapter / PoE - external AC 100-240 V (50/60 Hz) 11 Watt |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 104 °F |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 45111719 |
BRANDS | SONY ELECTRONICS |
---|---|
UNSPSC | 45111719 |
Part# | SON-SRGXB25W/N |
MFG Part# | SRGXB25W/N |
Max Resolution | 3840 x 2160 |
Device Type | Conference camera |
Optical Zoom | 25 x |
Connectivity Technology | Wired |
Form Factor | Bullet |
Type | Motorized zoom |
Color | White |
Digital Zoom | 6 |
Focus Adjustment | Automatic, manual |
Digital Video Format | H.264, H.265 |
Digital Video Capture Resolution | 3840 x 2160 |
Focal Length | 4.8 mm - 120 mm |
