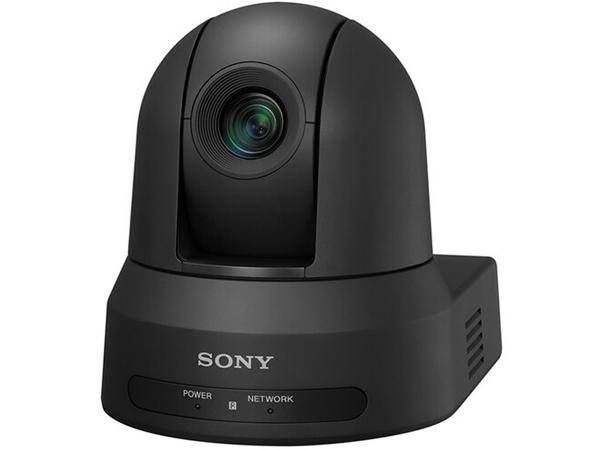

NDI BUNDLE HD/3G-SDI/HDMI/IP STREAMING OPTICAL 20X (BLACK) 6805377
SKU
6805377
CA$4,998.68
Category: Digital Cameras
- Primary Information
Product Description: Sony SRG-X400 - conference camera - turret - with NDI|HX license Device Type: Conference camera - pan / tilt / zoom - turret Bundled with: NDI|HX license Audio: Yes: 2ch audio support Camera Mount Type: Ceiling mount Dimensions (WxDxH): 6.2 in x 7.9 in x 7 in Weight: 3.97 lbs Color: Black Connectivity Technology: Wired Camera: Color - Day&Night - 1700 TVL Optical Zoom: 20 x Max Resolution: 3840 x 2160 Frame Rate (max): 59.94 frames per second Video Modes: 2160/29.97p, 2160/25p, 2160/23.98p, 1080/59.54p, 1080/50p, 1080/30p, 1080/25p, 1080/23.98p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p Optical Sensor Type: Exmor R CMOS - 1/2.5" - 8.5 MP Minimum Illumination: 1.6 lux F2.0 - 50 IRE Focal Length: 4.4 mm - 88 mm Focus Adjustment: Automatic, manual (min distance 3.1 in) Lens Iris: F/2.0-3.8 Panning Range (degree): -170 to +170 Tilting Range (degree): -20 to +90 Interfaces: HDMI, 3G-SDI, NDI|HX, Ethernet 10Base-T/100Base-TX/1000Base-TX, LAN Control Interface: VISCA Voltage: AC 100-240 V, DC 12 V / PoE Plus Features: 256 preset positions, 100 preset positions, Picture Freeze Preset, PTZ Motion Sync, auto ICR, Visibility Enhancer, Image Stabilization, image flip, Picture Setting File, Flicker Cancel, standby mode, remote standby, tally light Environmental Parameters (operating): 32 °F - 104 °F - General
Device Type: Conference camera Audio Support: Yes: 2ch audio support Audio Formats: ACC Form Factor: Turret Camera Mount Type: Ceiling mount Connectivity Technology: Wired Width: 6.2 in Depth: 7.9 in Height: 7 in Weight: 3.97 lbs Bundled with: NDI|HX license - Camera
Type: Color - Day&Night - pan / tilt / zoom Digital Video Format: H.264, H.265 Horizontal Resolution (TV Lines): 1700 Max Digital Video Resolution: 3840 x 2160 Video Modes: 2160/29.97p, 2160/25p, 2160/23.98p, 1080/59.54p, 1080/50p, 1080/30p, 1080/25p, 1080/23.98p, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p Digital Zoom: 12 Exposure Range: 1/1 sec - 1/10000 sec Minimum Illumination: 1.6 lux F2.0 - 50 IRE Frame Rate (max): 59.94 frames per second Features: 256 preset positions, 100 preset positions, Picture Freeze Preset, PTZ Motion Sync, auto ICR, Visibility Enhancer, Image Stabilization, image flip, Picture Setting File, Flicker Cancel, standby mode, remote standby, tally light - Image Sensor
Type: 8.5 MP Exmor R CMOS 1/2.5" - Lens Construction
Optical Zoom: 20 x Focal Length: 4.4 mm - 88 mm Lens Iris: F/2.0-3.8 Focus Adjustment: Automatic, manual Min Focus Distance: 3.1 in - Panning
Range (degree): -170 to +170 Speed (degree/sec): Up to 300 - Tilting
Range (degree): -20 to +90 Speed (degree/sec): Up to 126 - Interfaces
Video: HDMI, 3G-SDI, NDI|HX Network Interface: Ethernet 10Base-T/100Base-TX/1000Base-TX, LAN Network Protocols: DSCP, HTTP, NTP, RTMP, RTMPS, RTSP, ARP, DHCP, DNS, HTTPS, ICMP, IGMP, IPv4, IPv6, RTCP, RTP, TCP/IP, UDP/IP, UPnP, NDI HX Control Interface: VISCA - Expansion / Connectivity
Ports: 2 x serial RS-422 - RJ-45 ¦ HDMI output - HDMI Type A ¦ 3G-SDI - BNC ¦ LAN/power - RJ-45 ¦ 2 x audio line-in/microphone - 3.5 mm jack - Miscellaneous
Included Accessories: Power adapter, remote control, ceiling mount bracket, 9 screws M3x8, wire rope, screw M2.6x6, HDMI cable fixing plate Compliant Standards: IEEE 802.3at, IEC 60130-10, JEIDA Color: Black - Power
Power Requirements: DC 12 V / PoE Plus Power Device: Power adapter / PoE - external AC 100-240 V (50/60 Hz) 25.5 Watt - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 45121504
| BRANDS | SONY ELECTRONICS |
|---|---|
| UNSPSC | 45121504 |
| Part# | SON-SRGX400/N |
| MFG Part# | SRGX400/N |
| UPC | 272422236156 |
| Max Resolution | 3840 x 2160 |
| Device Type | Conference camera |
| Optical Zoom | 20 x |
| Connectivity Technology | Wired |
| Form Factor | Turret |
| Type | 8.5 MP Exmor R CMOS 1/2.5" |
| Color | Black |
| Digital Zoom | 12 |
| Focus Adjustment | Automatic, manual |
| Digital Video Format | H.264, H.265 |
| Focal Length | 4.4 mm - 88 mm |
