NR ARUBA 7210 US CTRL 13127565
SKU
13127565
Category: Network Devices
- Primary Information

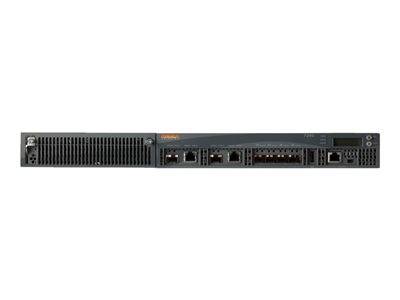

Product Description: HPE Aruba 7210 (US) Controller - network management device Device Type: Network management device Form Factor: Rack-mountable - 1U Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet Performance: Firewall throughput: 20 Gbps Capacity: Maximum number of access points: 512 ¦ Concurrent devices: 16384 ¦ Virtual interfaces (VLANs): 4094 ¦ Concurrent GRE tunnels: 8192 ¦ Maximum RAPs: 512 ¦ Concurrent tunneled ports: 8192 ¦ Concurrent IPSec sessions: 16384 ¦ Concurrent SSL fallback sessions: 8192 ¦ Active firewall sessions: 2015291 Power: AC 120/230 V (50/60 Hz) Power Redundancy: Yes Dimensions (WxDxH): 17.5 in x 17.5 in x 1.7 in Weight: 16.42 lbs Manufacturer Warranty: 1-year warranty - General
Device Type: Network management device Height (Rack Units): 1U Built-in Devices: Status LCD Width: 17.5 in Depth: 17.5 in Height: 1.7 in Weight: 16.42 lbs - Networking
Form Factor: Rack-mountable Connectivity Technology: Wired Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet Performance: Firewall throughput: 20 Gbps Capacity: Maximum number of access points: 512 ¦ Concurrent devices: 16384 ¦ Virtual interfaces (VLANs): 4094 ¦ Concurrent GRE tunnels: 8192 ¦ Maximum RAPs: 512 ¦ Concurrent tunneled ports: 8192 ¦ Concurrent IPSec sessions: 16384 ¦ Concurrent SSL fallback sessions: 8192 ¦ Active firewall sessions: 2015291 Status Indicators: Status, link/activity Features: Layer 3 switching, VPN support, IPv6 support, IPv4 support, Adaptive Radio Management (ARM), AppRF technology - Expansion / Connectivity
Interfaces: 4 x 10GBase-X - SFP+ ¦ 2 x 1000Base-X ¦ 1 x USB 2.0 ¦ 1 x console - RJ-45 ¦ 1 x mini-USB - Miscellaneous
Compliant Standards: C-Tick, CISPR 22 Class B, EN 61000-3-2, NOM, EN 61000-3-3, EN55022 Class B, CB, ICES-003 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, MIC, AS/NZS 3548, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1 Second Edition, KCC, ANATEL, cTUVus, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class B, KN24, EN 55024: CISPR 24:2010 - Power
Power Device: Internal power supply - hot-plug Installed Qty: 1 Max Supported Qty: 2 Power Redundancy: Yes Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 110 Watt Power Provided: 350 Watt - Manufacturer Warranty
Service & Support: Limited warranty - parts and labor - 1 year ¦ New releases update - 90 days - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43221700
| BRANDS | HEWLETT PACKARD ENTERPRISE |
|---|---|
| UNSPSC | 43221700 |
| Part# | HPE-JW744A |
| MFG Part# | JW744A |
| UPC | 190017028040 |
| Device Type | Network management device |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
