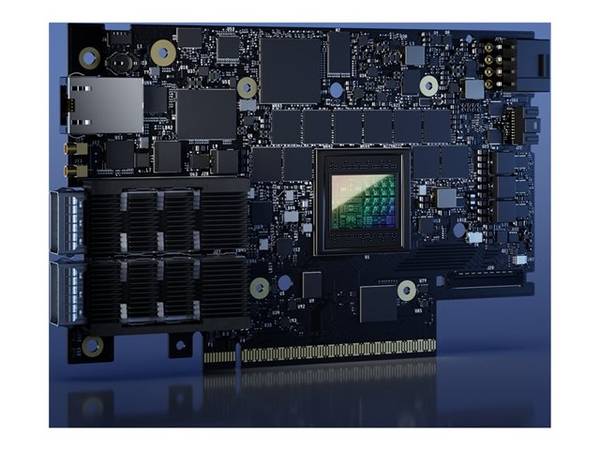

NVIDIA BLUEFIELD-3 B3220 P-SERIES FHHL DPU 200GBE (DEFAULT MODE)/NDR2 00 IB DUAL-PORT CRYPTO ENABLED TALL BRACKET 8178442
SKU
8178442
CA$8,458.52
NVIDIA BLUEFIELD-3 B3220 P-SERIES FHHL DPU 200GBE (DEFAULT MODE)/NDR2 00 IB DUAL-PORT QSFP112 PCIE GEN5.0 x16 W/x16 PCIE EXT OPT 16 ARM CORES 32GB ON-BOARD DDR INT BMC CRYPTO ENABLED TALL BRACKET
Category: Network Adapters
- Primary Information
Product Description: NVIDIA BlueField-3 P-Series B3220 - network adapter - PCIe 5.0 x16 - 200 Gigabit QSFP112 x 2 Device Type: Network adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express 5.0 x16 PCI Specification Revision: PCIe 5.0, PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.1 Ports: 200 Gigabit QSFP112 x 2 Dimensions (WxDxH): 6.6 in x 4.4 in Cabling Type: Ethernet 200GBase-CR4, Ethernet 100GBase-CR4, Ethernet 100GBase-CR2, Ethernet 100GBase-CR1, Ethernet 50GBase-CR, Ethernet 50GBase-R2, Ethernet 40GBASE-CR4, Ethernet 40GBase-R2, Ethernet 25GBase-R, Ethernet 10GBase-R, Ethernet 10GBase-CX4, Ethernet 1000Base-CX Data Link Protocol: 200 Gigabit InfiniBand, 200GbE, 100GbE, 50GbE, 40GbE, 25GbE, 10GbE, 1GbE RAM: 32 GB Compliant Standards: IBTA 1.5 Power: DC 12 V - General
Device Type: Network adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express 5.0 x16 PCI Specification Revision: PCIe 5.0, PCIe 4.0, PCIe 3.0, PCIe 2.0, PCIe 1.1 - Networking
Ports: 200 Gigabit QSFP112 x 2 Connectivity Technology: Wired Cabling Type: Ethernet 200GBase-CR4, Ethernet 100GBase-CR4, Ethernet 100GBase-CR2, Ethernet 100GBase-CR1, Ethernet 50GBase-CR, Ethernet 50GBase-R2, Ethernet 40GBASE-CR4, Ethernet 40GBase-R2, Ethernet 25GBase-R, Ethernet 10GBase-R, Ethernet 10GBase-CX4, Ethernet 1000Base-CX Data Link Protocol: 200 Gigabit InfiniBand, 200 Gigabit Ethernet, 100 Gigabit Ethernet, 50 Gigabit Ethernet, 40 Gigabit Ethernet, 25 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet Features: Crypto enabled, integrated BMC, 16-core CPU, FHHL, InfiniBand HDR100 Link support, InfiniBand EDR Link support, InfiniBand FDR Link support, InfiniBand HDR Link support, InfiniBand NDR200 Link support, InfiniBand SDR Link support, auto-negotiation, PCIe x16 extension option Compliant Standards: IBTA 1.5 - Processor / Memory
RAM: 32 GB - Expansion / Connectivity
Interfaces: 2 x 200Gb Ethernet / 200Gb Infiniband - QSFP112 - Miscellaneous
Compliant Standards: CB, cTUVus, FCC, VCCI, ICES, RCM, RoHS - Power
Voltage Required: DC 12 V - Dimensions & Weight
Depth: 6.6 in Height: 4.4 in - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 131 °F Humidity Range Operating: 10 - 85% RH - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | NVIDIA CORPORATION |
|---|---|
| UNSPSC | 43201404 |
| Part# | MNX-900-9D3B6-00CV-AA0-DELL |
| MFG Part# | 900-9D3B6-00CV-AA0 |
| Device Type | Network adapter |
| Connectivity Technology | Wired |
| Form Factor | Plug-in card |
| Data Link Protocol | 10 Gigabit Ethernet, 100 Gigabit Ethernet, 200 Gigabit Ethernet, 200 Gigabit InfiniBand, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, Gigabit Ethernet |
