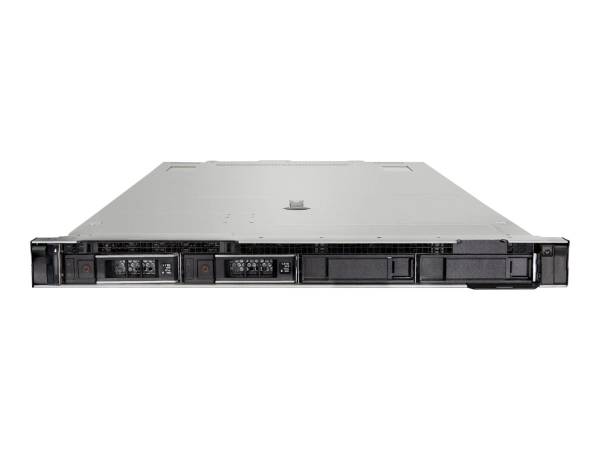

NVIDIA UFM 3.0 APPLIANCE FOR UFM TELEMETRY OR UFM ENT 1U SVR W/2X CONNECTX-6 HDR DUAL-PORT 200GB/S IB ADPT UFM 7262844
SKU
7262844
CA$42,399.36
NVIDIA UFM 3.0 APPLIANCE FOR UFM TELEMETRY OR UFM ENT 1U SVR W/2X CONNECTX-6 HDR DUAL-PORT 200GB/S IB ADPT UFM SW PKG SOLD SEPARATELY.
Category: Network Devices
- Primary Information
Product Description: NVIDIA UFM MUA960 - network management device Device Type: Network management device Form Factor: Front to back airflow rack-mountable - 1U Processor: 2 x Intel Xeon Silver 4314 - 2.4 GHz RAM: 64 GB Hard Drive: 1.92 TB x 2 Data Link Protocol: 200 Gigabit InfiniBand Included Accessories: Rack rails kit, 2 power cords (C13 to C14), bezel Power: AC 100-240 V (50/60 Hz) Power Redundancy: Yes Dimensions (WxDxH): 19 in x 31.9 in x 1.7 in Weight: 37.48 lbs - General
Device Type: Network management device Height (Rack Units): 1U Built-in Devices: LED panel, telemetry module Width: 19 in Depth: 31.9 in Height: 1.7 in Weight: 37.48 lbs - Processor / Memory / Storage
Processors Installed: 2 x Intel Xeon Silver 4314 2.4 GHz RAM: 64 GB DDR4 SDRAM Hard Drive: SSD 1.92 TB x 2 - 2.5" - Networking
Form Factor: Rack-mountable Airflow Direction: Front to back airflow Connectivity Technology: Wired Data Link Protocol: 200 Gigabit InfiniBand Status Indicators: Drive error, temperature error, electrical error, memory error, PCIe error Features: Auto-negotiation, InfiniBand QDR Link support, InfiniBand DDR Link support, InfiniBand FDR Link support, InfiniBand FDR-10 Link support, InfiniBand EDR Link support, InfiniBand SDR Link support, InfiniBand HDR Link support - Expansion / Connectivity
Expansion Bays: 4 hot-swap - 3.5" Expansion Slots: 2 PCI Express Interfaces: 1 x serial - DB-9 ¦ 5 x network - RJ-45 ¦ 2 x 1000Base-T (management) - RJ-45 ¦ 2 x 10Gb Ethernet (management) - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x USB 2.0 - Type A ¦ 2 x 200Gb Infiniband - QSFP - Miscellaneous
Included Accessories: Rack rails kit, 2 power cords (C13 to C14), bezel Cables Included: 1 x RS-232 cable - 6.6 ft ¦ 1 x network cable - 6.6 ft Compliant Standards: VCCI, CCC, RoHS, WEEE, BSMI Class A, EAC, RCM, TUV Rheinland, UKCA - Power
Power Device: Internal power supply - hot-plug Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Voltage Required: AC 100-240 V (50/60 Hz) Power Provided: 1100 Watt 80 PLUS Certification: 80 PLUS Platinum - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 95 °F Humidity Range Operating: 10 - 85% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222500
| BRANDS | NVIDIA |
|---|---|
| UNSPSC | 43222500 |
| Part# | MNX-MUA9602H-2SR |
| MFG Part# | MUA9602H-2SR |
| Device Type | Network management device |
| 80 PLUS Certification | 80 PLUS Platinum |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 200 Gigabit InfiniBand |
