OPENGEAR MODEL CM8116, 16 SERIAL STRAIGHT PINOUT, 2X 1GBE, ARM 1.6GHZ 2-CORE 2GB 7240999

SKU
7240999

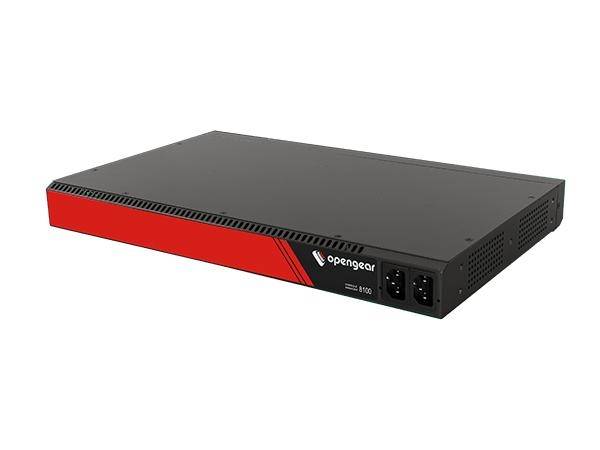

main product photo
CA$3,960.66
MODEL CM8116, 16 SERIAL STRAIGHT PINOUT, 2X 1GBE, ARM 1.6GHZ 2-CORE 2GB MEM 32GB FLASH TPM 2.0, DOCKER SUPPORT, DUAL AC, C14 POWER CORD





buy now pay later
Category: Network Devices
  • Primary Information
    Product Description: Opengear CM8116 - console server
    Device Type: Console server
    Form Factor: Rack-mountable - 1U
    Processor: 1 x Marvell 88F6820 - 1.6 GHz
    RAM: 2 GB
    Flash Memory: 32 GB
    Ports Qty: 16
    Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
    Included Accessories: Rack mount kit, 4 x screws, 2 power cords (C13 to C14), 2 rack mounting ears, nuts
    Power: AC 100-240 V
    Power Redundancy: Yes
    Dimensions (WxDxH): 17.3 in x 9.3 in x 1.7 in
    Weight: 9.92 lbs
    Manufacturer Warranty: 4-year warranty
  • General
    Device Type: Console server
    Height (Rack Units): 1U
    Width: 17.3 in
    Depth: 9.3 in
    Height: 1.7 in
    Weight: 9.92 lbs
  • Processor / Memory / Storage
    Processors Installed: 1 x Marvell 88F6820 1.6 GHz
    Max Supported Qty: 1
    RAM: 2 GB DDR4 SDRAM
    Flash Memory: 32 GB
  • Networking
    Form Factor: Rack-mountable
    Ports Qty: 16
    Connectivity Technology: Wired
    Data Transfer Rate: 230.4 Kbps
    Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
    Network / Transport Protocol: IPSec, IPv6
    Remote Management Protocol: SNMP, HTTP, SSH, IPv6
    Features: Firewall protection, VPN support, Management Information Base (MIB), Authentication, Authorization and Accounting (AAA), Trusted Platform Module 2.0 (TPM 2.0), ESD Protector, Smart Out-of-Band, passive cooling
    Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory
  • Expansion / Connectivity
    Interfaces: 16 x RS-232 - RJ-45 ¦ 2 x 1000Base-T - RJ-45 ¦ 2 x USB 3.0 - Type A ¦ 1 x console - RJ-45
  • Miscellaneous
    Included Accessories: Rack mount kit, 4 x screws, 2 power cords (C13 to C14), 2 rack mounting ears, nuts
    Cables Included: 1 x patch cable - 6 ft ¦ 1 x DB-9 to RJ-45 adapter
    MTBF: 150,000 hours
    Compliant Standards: RoHS, FCC Part 15 B Class A, CNS13438:2006, EN 61000-4-2:2009, EN 61000-4-11:2004, IEC 61000-4-2:2008, IEC 61000-4-8:2009, IEC 61000-4-11:2004, EN 61000-3-3:2013, IEC 61000-3-3:2013, EN 61000-4-3:2006+A1:2008+A2:2010, IEC 61000-4-4:2012, IEC 61000-4-3:2006+A1:2007+A2:2010, AS/NZS CISPR 32:2015, IEC 62368, EN 55035:2017, CISPR 32:2016, VCCI 32, EN 61000-4-4:2012, EN 61000-3-2:2019, EN 55032:2017, ICES-003 issue 7, IEC 61000-3-2:2018
  • Power
    Power Device: Internal power supply
    Installed Qty: 2
    Max Supported Qty: 2
    Power Redundancy: Yes
    Voltage Required: AC 100-240 V
    Power Consumption Operational: 15 Watt
  • Manufacturer Warranty
    Service & Support: Limited warranty - 4 years ¦ Technical support - 4 years
  • Environmental Parameters
    Min Operating Temperature: 41 °F
    Max Operating Temperature: 122 °F
    Humidity Range Operating: 5 - 90% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222500
More Information
BRANDS OPENGEAR
UNSPSC 43222500
Part# OPE-CM8116-C14
MFG Part# CM8116-C14
Device Type Console server
Connectivity Technology Wired
Data Transfer Rate 230.4 Kbps
Form Factor Rack-mountable
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232
Remote Management Protocol HTTP, IPv6, SNMP, SSH
