OPENGEAR MODEL OM2248, 48 SELECTABLE SERIAL PORTS, X86 4-CORE CPU, 8G RAM, 64G SSD 7241017
SKU
7241017
CA$8,254.41
MODEL OM2248, 48 SELECTABLE SERIAL PORTS, X86 4-CORE CPU, 8G RAM, 64G SSD, 1GBE WITH SFP, DOCKER SUPPORT, TPM 2.0, DUAL AC, C14 POWER CORD
Category: Network Devices
- Primary Information

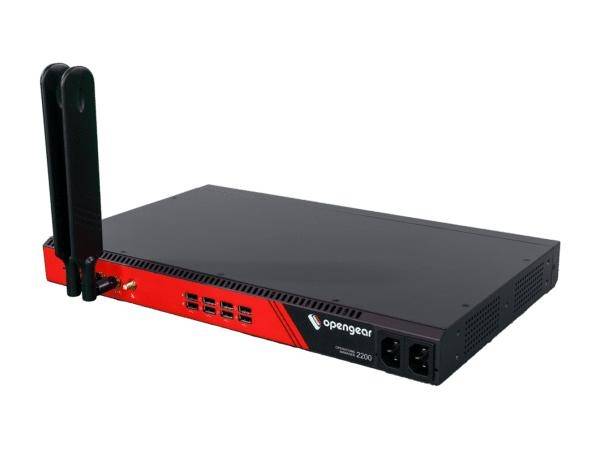

Product Description: Opengear OM2248 - console server Device Type: Console server Form Factor: Rack-mountable - 1U Processor: 1 x 1.4 GHz RAM: 8 GB Flash Memory: 16 MB Hard Drive: 64 GB x 1 - SATA 6Gb/s Ports Qty: 48 Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 Included Accessories: Rack mount kit Dimensions (WxDxH): 17.3 in x 10.2 in x 1.8 in Weight: 7.72 lbs Manufacturer Warranty: 4-year warranty - General
Device Type: Console server Height (Rack Units): 1U Width: 17.3 in Depth: 10.2 in Height: 1.8 in Weight: 7.72 lbs - Processor / Memory / Storage
Processors Installed: 1 x 1.4 GHz Max Supported Qty: 1 RAM: 8 GB DDR3 SDRAM Flash Memory: 16 MB Hard Drive: SSD 64 GB x 1 - SATA 6Gb/s - M.2 - Networking
Form Factor: Rack-mountable Ports Qty: 48 Connectivity Technology: Wired Data Transfer Rate: 230.4 Kbps Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 Network / Transport Protocol: IPSec, OpenVPN Remote Management Protocol: SNMP Features: Firewall protection, Management Information Base (MIB), Authentication, Authorization and Accounting (AAA), Python runtime, secure boot, Trusted Platform Module 2.0 (TPM 2.0), Smart Out-of-Band, Quad-core CPU, Docker Support, passive cooling Authentication Method: Kerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory - Expansion / Connectivity
Interfaces: 2 x 1000Base-T - RJ-45/SFP ¦ 1 x console - RJ-45 ¦ 48 x RS-232 - RJ-45 ¦ 8 x USB 2.0 - Type A ¦ 2 x antenna - SMA - Miscellaneous
Included Accessories: Rack mount kit Cables Included: 1 x network cable - 6 ft ¦ 1 x crossover cable MTBF: 100,000 hour(s) Compliant Standards: EN 61000-4-2, IC, FCC, PTCRB, GCF, NCC, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 61000-4-5:2014, JRF, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, JPA, EN 55032:2015 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 61000-4-6:2008, EN 61000-4-3:2006+A1:2006+A2:2010, EN 61000-4-4:2007, EN 61000-4-8:2009, EN 61000-4-11:2010, EN 61000-4-28:2010 - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 - Manufacturer Warranty
Service & Support: Limited warranty - 4 years ¦ Technical support - 4 years - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 90% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222500
| BRANDS | OPENGEAR |
|---|---|
| UNSPSC | 43222500 |
| Part# | OPE-OM2248-C14 |
| MFG Part# | OM2248-C14 |
| Device Type | Console server |
| Connectivity Technology | Wired |
| Data Transfer Rate | 230.4 Kbps |
| Form Factor | Rack-mountable |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232 |
| Remote Management Protocol | SNMP |
