OTLBL 4MM 8MP 24HRX7 COLOR 6749510
SKU
6749510
- Primary Information

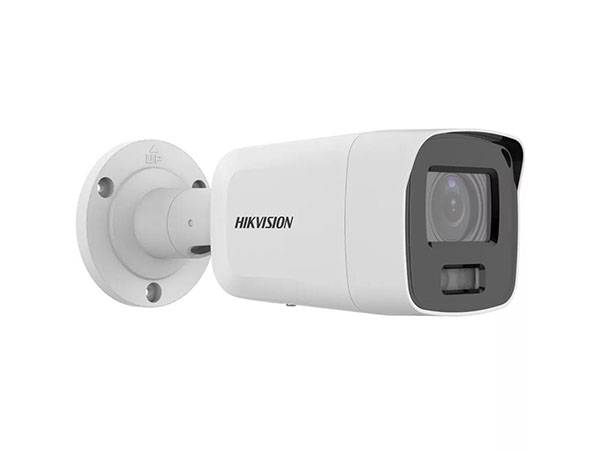

Product Description: Hikvision ColorVu DS-2CD2T87G2-L - network surveillance camera Device Type: Network surveillance camera - fixed Dimensions (WxDxH): 4.1 in x 11.4 in x 4.1 in Weight: 2.78 lbs Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 3840 x 2160 Frame Rate (max): 30 frames per second Motion Detection: Yes Video Modes: 720p, 1080p, 4K Optical Sensor Type: PS CMOS - 1/1.2" - 8 MP Minimum Illumination: 0.0005 lux F1.0 - AGC on ¦ 0 lux - light on Focal Length Control: Fixed focal Focal Length: 4 mm Focus Adjustment: (min distance 23 ft) Lens Iris: F/1.0 Panning Range (degree): 0 to 360 Tilting Range (degree): 0 to 90 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: DC 12 V / PoE Class 3 Features: Manual white balance, Backlight Compensation (BLC), sharpness control, digital image rotation, alarm function, progressive scanning, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Highlight Compensation (HLC), Scene Change Detection, NAS-Ready, tamper-detection, enhanced noise reduction, reset button, password protection, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, heartbeat, anti-flicker, DORI coverage, Vehicle Detection, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, human detection, firmware upgradable, White Light, Scalable Video Coding (SVC), Face Capture, smart supplement light Environmental Parameters (operating): -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity - General
Device Type: Network surveillance camera Connectivity Technology: Wired Width: 4.1 in Depth: 11.4 in Height: 4.1 in Weight: 2.78 lbs - Camera
Type: Color - Day&Night - fixed Digital Video Format: MJPEG, H.264, H.265, H.265+, H.264+ Max Digital Video Resolution: 3840 x 2160 Motion Detection: Yes Video Modes: 720p, 1080p, 4K Exposure Range: 1/3 sec - 1/100000 sec Minimum Illumination: 0.0005 lux F1.0 - AGC on ¦ 0 lux - light on Video Capture: 3840 x 2160, 50 Hz @ 20 fps ¦ 3072 x 1728, 50 Hz @ 20 fps ¦ 2688 x 1520, 50 Hz @ 25 fps ¦ 2688 x 1520, 60 Hz @ 30 fps ¦ 1920 x 1080, 50 Hz @ 25 fps ¦ 1920 x 1080, 60 Hz @ 30 fps ¦ 1280 x 720, 50 Hz @ 25 fps ¦ 1280 x 720, 60 Hz @ 30 fps ¦ 3840 x 2160, 60 Hz @ 20 fps ¦ 3072 x 1728, 60 Hz @ 20 fps ¦ 640 x 480, 50 Hz @ 25 fps ¦ 640 x 360, 50 Hz @ 25 fps ¦ 320 x 240, 50 Hz @ 25 fps ¦ 640 x 480, 60 Hz @ 30 fps ¦ 640 x 360, 60 Hz @ 30 fps ¦ 320 x 240, 60 Hz @ 30 fps Features: Manual white balance, Backlight Compensation (BLC), sharpness control, digital image rotation, alarm function, progressive scanning, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Highlight Compensation (HLC), Scene Change Detection, NAS-Ready, tamper-detection, enhanced noise reduction, reset button, password protection, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, heartbeat, anti-flicker, DORI coverage, Vehicle Detection, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, human detection, firmware upgradable, White Light, Scalable Video Coding (SVC), Face Capture, smart supplement light - Image Sensor
Type: 8 MP PS CMOS 1/1.2" - Lens Construction
Type: Fixed focal Focal Length: 4 mm Lens Iris: F/1.0 Min Focus Distance: 23 ft Horizontal Field of View (degree): 88 Vertical Field of View (degree): 49 Diagonal Field of View (degree): 102 - Panning
Range (degree): 0 to 360 - Tilting
Range (degree): 0 to 90 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, PPPoE, SMB, IGMP, SSL, QOS, CIFS, NFS, ISAPI, SDK - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card - Miscellaneous
Compliant Standards: CB, IC, UL 60950-1, FCC CFR47 Part 15 B, REACH, IP67, KC, RCM, RoHS 2011/65/EU, BIS, EN 61000-3-3:2013, WEEE 2012/19/EU, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55032:2015, LoA, IEEE 802.3af, IS13252-1 (2010)/A1:2013/A2:2015, AS/NZS CISPR 32:2015, EN 50130-4:2011+A1:2014, KN32:2015, KN35:2015, IEC 60529:2013, EN 60950-1:2005+Am1:2009+Am 2:2013, IEC 62368-1: 2014, ICES-003 issue 6:2016 - Power
Power Requirements: DC 12 V / PoE Class 3 Power Device: 9.5 Watt - Dimensions & Weight (Shipping)
Shipping Width: 15.2 in Shipping Depth: 7.5 in Shipping Height: 7.1 in Shipping Weight: 4.26 lbs - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | HIK-DS2CD2T87G2-L4MM |
| MFG Part# | DS-2CD2T87G2-L 4MM |
| UPC | 842571135701 |
| Max Resolution | 3840 x 2160 |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Type | Fixed focal |
| Focus Adjustment | (min distance 23 ft) |
| Digital Video Format | H.264, H.264+, H.265, H.265+, MJPEG |
| Focal Length | 4 mm |
