OTLBL 6MM 8MP 24HRX7 COLOR 6749511
SKU
6749511
- Primary Information

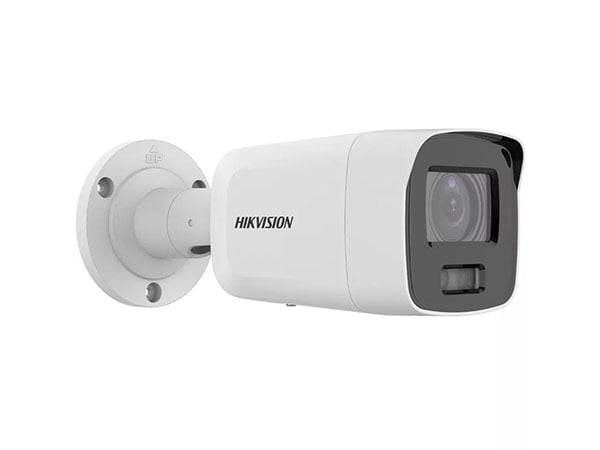

Product Description: Hikvision Pro Series DS-2CD2T87G2-L - network surveillance camera - bullet Device Type: Network surveillance camera - fixed - bullet Dimensions (WxDxH): 4.1 in x 11.4 in x 4.1 in Weight: 2.62 lbs Connectivity Technology: Wired Camera: Color - Day&Night Max Resolution: 3840 x 2160 Frame Rate (max): 30 frames per second Motion Detection: Yes Optical Sensor Type: CMOS - 1/1.2" - 8 MP Minimum Illumination: 0.0005 lux - color - F1.0 - AGC on ¦ 0 lux - light on Focal Length Control: Fixed focal Focal Length: 6 mm Focus Adjustment: (min distance 43 ft) Lens Iris: F/1.0 - fixed iris Panning Range (degree): 0 to 355 Tilting Range (degree): 0 to 90 Interfaces: Ethernet 10Base-T/100Base-TX Voltage: DC 12 V / PoE Class 3 Features: Manual white balance, Backlight Compensation (BLC), sharpness control, digital image rotation, alarm function, progressive scanning, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Highlight Compensation (HLC), Scene Change Detection, NAS-Ready, tamper-detection, enhanced noise reduction, reset button, password protection, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, heartbeat, anti-flicker, DORI coverage, Vehicle Detection, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, human detection, firmware upgradable, White Light, Scalable Video Coding (SVC), Face Capture, smart supplement light, Hikvision ColorVu technology, 24/7 color imaging, 167m detect distance, 66m identify distance, 33m recognize distance, 16m observe distance Environmental Parameters (operating): -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity - General
Device Type: Network surveillance camera Form Factor: Bullet Connectivity Technology: Wired Width: 4.1 in Depth: 11.4 in Height: 4.1 in Weight: 2.62 lbs - Camera
Type: Color - Day&Night - fixed Digital Video Format: MJPEG, H.264, H.265, H.265+, H.264+ Max Digital Video Resolution: 3840 x 2160 Motion Detection: Yes Exposure Range: 1/3 sec - 1/100000 sec Minimum Illumination: 0.0005 lux - color - F1.0 - AGC on ¦ 0 lux - light on Video Capture: 3840 x 2160, 50 Hz @ 25 fps ¦ 3200 x 1800, 50 Hz @ 25 fps ¦ 2688 x 1520, 50 Hz @ 25 fps ¦ 1280 x 720, 50 Hz @ 25 fps ¦ 1920 x 1080, 50 Hz @ 25 fps ¦ 1920 x 1080, 60 Hz @ 30 fps ¦ 1280 x 720, 60 Hz @ 30 fps ¦ 2688 x 1520, 60 Hz @ 30 fps ¦ 3840 x 2160, 60 Hz @ 24 fps ¦ 640 x 480, 50 Hz @ 25 fps ¦ 640 x 360, 50 Hz @ 25 fps ¦ 640 x 480, 50 Hz @ 25 fps ¦ 640 x 360, 50 Hz @ 25 fps ¦ 640 x 360, 60 Hz @ 30 fps ¦ 640 x 360, 60 Hz @ 30 fps ¦ 1920 x 1080, 50 Hz @ 10 fps ¦ 1280 x 720, 50 Hz @ 10 fps ¦ 640 x 480, 50 Hz @ 10 fps ¦ 640 x 360, 60 Hz @ 10 fps ¦ 1920 x 1080, 60 Hz @ 10 fps ¦ 1280 x 720, 60 Hz @ 10 fps ¦ 640 x 480, 60 Hz @ 10 fps ¦ 640 x 360, 60 Hz @ 10 fps Features: Manual white balance, Backlight Compensation (BLC), sharpness control, digital image rotation, alarm function, progressive scanning, saturation control, brightness control, contrast control, image mirror, Wide Dynamic Range (WDR), Motion Detection Technology, Privacy Mask Function, Highlight Compensation (HLC), Scene Change Detection, NAS-Ready, tamper-detection, enhanced noise reduction, reset button, password protection, Region of Interest (ROI), Variable Bitrate (VBR), Constant Bitrate (CBR), intrusion detection, ONVIF (Profile S) support, ONVIF (Profile G) support, Pixel Counter Support, Line Crossing Detection, heartbeat, anti-flicker, DORI coverage, Vehicle Detection, 3D digital noise reduction (DNR), region exiting detection, region entrance detection, human detection, firmware upgradable, White Light, Scalable Video Coding (SVC), Face Capture, smart supplement light, Hikvision ColorVu technology, 24/7 color imaging, 167m detect distance, 66m identify distance, 33m recognize distance, 16m observe distance - Image Sensor
Type: 8 MP CMOS 1/1.2" - Lens Construction
Type: Fixed focal Focal Length: 6 mm Lens Iris: F/1.0 fixed iris Min Focus Distance: 43 ft Horizontal Field of View (degree): 54 Vertical Field of View (degree): 30 Diagonal Field of View (degree): 62 - Panning
Range (degree): 0 to 355 - Tilting
Range (degree): 0 to 90 - Interfaces
Network Interface: Ethernet 10Base-T/100Base-TX Network Protocols: DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, TLS, IPv6, Bonjour, PPPoE, SMB, IGMP, SSL, QOS, CIFS, NFS, ISAPI, SDK - Expansion / Connectivity
Ports: LAN/power - RJ-45 Supported Memory Cards: microSD Card, microSDHC Card, microSDXC Card - Miscellaneous
Compliant Standards: CB, IC, UL 60950-1, FCC CFR47 Part 15 B, REACH, IP67, KC, RCM, RoHS 2011/65/EU, BIS, EN 61000-3-3:2013, WEEE 2012/19/EU, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, EN 55032:2015, LoA, IEEE 802.3af, IS13252-1 (2010)/A1:2013/A2:2015, IEEE 802.1x, AS/NZS CISPR 32:2015, EN 50130-4:2011+A1:2014, KN32:2015, KN35:2015, IEC 60529:2013, EN 60950-1:2005+Am1:2009+Am 2:2013, IEC 62368-1: 2014, ICES-003 issue 6:2016 - Power
Power Requirements: DC 12 V / PoE Class 3 Power Device: 9.5 Watt - Dimensions & Weight (Shipping)
Shipping Width: 15.2 in Shipping Depth: 7.5 in Shipping Height: 7.1 in Shipping Weight: 3.75 lbs - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 140 °F Relative Humidity (operating): 0 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 46171610
| BRANDS | HIKVISION |
|---|---|
| UNSPSC | 46171610 |
| Part# | HIK-DS2CD2T87G2-L6MM |
| MFG Part# | DS-2CD2T87G2-L 6MM |
| UPC | 842571135718 |
| Max Resolution | 3840 x 2160 |
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Form Factor | Bullet |
| Type | Fixed focal |
| Focus Adjustment | (min distance 43 ft) |
| Digital Video Format | H.264, H.264+, H.265, H.265+, MJPEG |
| Focal Length | 6 mm |
