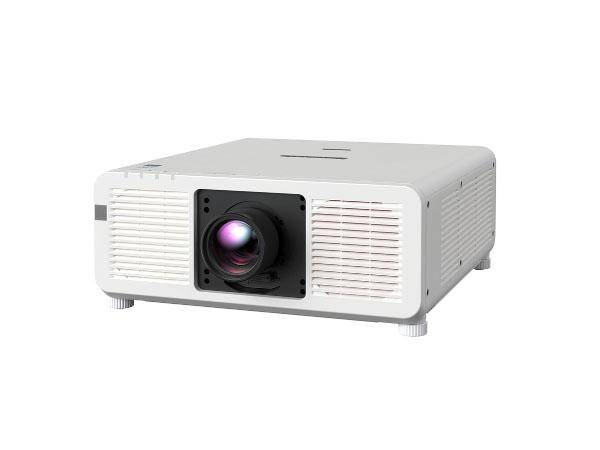

PANASONIC 4K (3840 X2160) 8,200LM LASER WHITE 7251396
SKU
7251396
Category: Projectors
- Primary Information
Model: PTREQ80WU Display Type: DLP Projector Image Brightness: 8200 ANSI lumen Native Resolution: 3840 x 2160 Display Format: 4K Ultra HD Image Contrast Ratio: 20000:1 Image Aspect Ratio: 16:10 Throw Ratio: 1.36 - 2.19:1 Min Image Size: 70 Inch Max Image Size: 700 Inch Focus Adjustment: Powered Zoom Type: Powered zoom Keystone Correction Direction: YES Vertical Keystone Correction: +/- 40 degree Horizontal Keystone Correction: +/- 40 degree Lens Shift Direction: From the origin point of the lens mounter Vertical Lens Shift: +/-29% Horizontal Lens Shift: +/-60% Network Connectivity: LAN Connectivity Technology: Wired Sound Emission: 35 dB Lamp Type: Laser diode Interfaces: Terminals | SERIAL IN: D-sub 9-pin (female) x 1 for external control (RS-232C compliant); Terminals | LAN: RJ-45 x 1 for network connection, PJLink (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible; Terminals | DC OUT: USB Type A x 1 (for power supply, DC 5 V, 2 A); Terminals | SERIAL OUT: D-sub 9-pin (male) x 1 for link control (RS-232C compliant); Terminals | USB: USB connector (Type A) x 1 for optional AJ-WM50 Series Wireless Module/USB memory; Terminals | REMOTE 2 IN: D-sub 9-pin (female) x 1 for external control (parallel); Terminals | Expansion Slot: Open slot for for function boards, Intel SDM compatible; Terminals | REMOTE 1: M3 stereo mini-jack x 1 for wired remote control; Terminals | REMOTE 1 OUT: M3 stereo mini-jack x 1 for link control (for wired remote control); Terminals | HDMI 1/2 IN:HDMI x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); Terminals | DisplayPort:DisplayPort x 1 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input); Terminals | Multi Sync In:BNC x 1; Power / Device Type: Power Supply Power Consumption Operational: 600 Watt Power / Voltage Required: AC 100-240 V, 50/60 Hz Enclosure Color: WHITE Width: 498 Mm Depth: 538 Mm Height: 212 Mm Weight: 28.8 Kg Features: Dynamic Visuals Take Production to New Heights; Effortless Workflow, Improved Expandability; New Cabinet Design for Maintenance-Free Operation; - Lens
Lens Shift Direction: From the origin point of the lens mounter Focus Adjustment: Powered Zoom Type: Powered zoom Keystone Correction Direction: YES Vertical Keystone Correction: +/- 40 degree Horizontal Keystone Correction: +/- 40 degree Vertical Lens Shift: +/-29% Horizontal Lens Shift: +/-60% - Special Feature
Min Operating Temperature: 0 celsius Max Operating Temperature: 45 celsius Humidity Range Operating: 10-80 % (no condensation) Sound Emission: 35 dB COO: Inquire TAA compliance: Inquire - Image
Image Brightness: 8200 ANSI lumen Native Resolution: 3840 x 2160 Image Contrast Ratio: 20000:1 Display Format: 4K Ultra HD Image Aspect Ratio: 16:10 Throw Ratio: 1.36 - 2.19:1 Min Image Size: 70 Inch Max Image Size: 700 Inch - Video Input
Network Connectivity: LAN - Power
Power / Device Type: Power Supply Power Consumption Operational: 600 Watt Power / Voltage Required: AC 100-240 V, 50/60 Hz - Dimensions&Miscellaneous
Width: 498 Mm Depth: 538 Mm Height: 212 Mm Weight: 28.8 Kg - UNSPSC Code
UNSPSC Code: 45111609
| BRANDS | PANASONIC |
|---|---|
| UNSPSC | 45111609 |
| Part# | PAN-PTREQ80WU |
| MFG Part# | PTREQ80WU |
| Image Brightness | 8200 ANSI lumen |
| Display Format | 4K Ultra HD |
| Connectivity Technology | Wired |
| Image Aspect Ratio | 16:10 |
| Power / Device Type | Power Supply |
| Focus Adjustment | Powered |
| Network Connectivity | LAN |
| Throw Ratio | 1.36 - 2.19:1 |
| Native Resolution | 3840 x 2160 |
| Display Type | DLP Projector |
