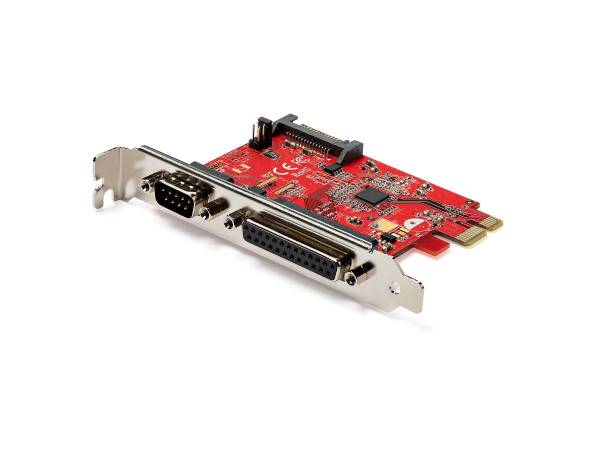

PCIE CARD WITH SERIAL AND PARALLEL PORT 6709300
SKU
6709300
CA$68.99
PCIe Card with Serial and Parallel Port - 1x DB25 parallel 1x RS232 Serial combo card - Up to 2.5Mbps (DB25)/up to 921.6Kbps (DB9) - SPP/Byte/ECP mode - Asix AX99100 - PCI-e Base 1.1/PCI Pwr Mgmt 1.2 - PCI Express 2.0 - Full-profile PCIe x1
Category: Others Accessories
- Primary Information
Product Description: StarTech.com PCIe Card with Serial and Parallel Port, PCI Express Combo Adapter Card with 1x DB25 Parallel Port & 1x RS232 DB9 Serial Port, Expansion/Controller Card, PCIe Printer Card - Full/Standard Profile (PEX1S1P950) - parallel/serial adapter - PCIe 2.0 - IEEE 1284 x 1 + RS-232 x 1 Device Type: Parallel/serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.0 x1 PCI Specification Revision: PCIe 2.0 Ports: IEEE 1284 x 1 + RS-232 x 1 Dimensions (WxDxH): 3.7 in x 3.1 in x 0.9 in Weight: 2.22 oz Data Link Protocol: Parallel, RS-232 Data Transfer Rate: 2.5 Mbps Processor: ASIX AX99100 Color: Red System Requirements: Linux 2.4.x - 2.6.x LTS versions only, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Parallel/serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express 2.0 x1 PCI Specification Revision: PCIe 2.0 - Networking
Ports: IEEE 1284 x 1 + RS-232 x 1 Connectivity Technology: Wired Data Link Protocol: Parallel, RS-232 Data Transfer Rate: 2.5 Mbps Features: 256-byte FIFO, flow control - Processor / Memory
Processor: ASIX AX99100 - Expansion / Connectivity
Interfaces: 1 x IEEE 1284 (EPP/ECP) - 25 pin D-Sub (DB-25) ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) - Miscellaneous
MTBF: 3,188,058 hours Compliant Standards: WHQL, FCC, RoHS Color: Red - Software / System Requirements
OS Required: Linux 2.4.x - 2.6.x LTS versions only, Microsoft Windows 7 / 8 / 8.1 / 10, Microsoft Windows Server 2003, Microsoft Windows Server 2008 R2, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Microsoft Windows Server 2016, Microsoft Windows Server 2019 - Dimensions & Weight
Width: 3.7 in Depth: 3.1 in Height: 0.9 in Weight: 2.22 oz - Dimensions & Weight (Shipping)
Shipping Width: 6.7 in Shipping Depth: 5.6 in Shipping Height: 1.2 in Shipping Weight: 4.48 oz - Manufacturer Warranty
Service & Support: Limited warranty - technical support - lifetime - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 185 °F Humidity Range Operating: 15 - 90% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211600
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43211600 |
| Part# | STC-PEX1S1P950 |
| MFG Part# | PEX1S1P950 |
| UPC | 65030891844 |
| Device Type | Parallel/serial adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 2.5 Mbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | Parallel, RS-232 |
| Color | Red |
