PCT2235 22 PRJCT CAPACITIVE MULTI-TOUCH 5630942

SKU
5630942
CA$431.49

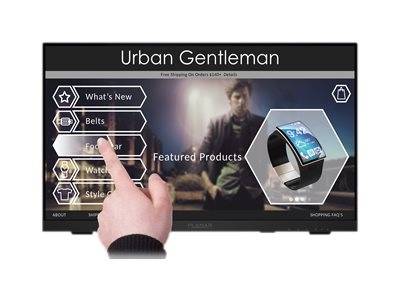

22-inch wide black projected capacitive multi-touch IPS edge-lit LED LCD, USB controller, VGA, HDMI, DP, speakers, and Helium Stand supporting 15 to 70 tilt range and flat orientation.





buy now pay later
  • Primary Information
    Product Description: Planar Helium PCT2235 - LED monitor - Full HD (1080p) - 22" - with 3-Years Warranty Planar Customer First
    Device Type: LED-backlit LCD monitor - 22" - touchscreen
    Energy Class: Class E
    Power Consumption (On mode): 14.4 W
    Features: Touchscreen
    Aspect Ratio: 16:9
    Native Resolution: Full HD (1080p) 1920 x 1080
    Pixel Pitch: 0.24825 mm
    Brightness: 250 cd/m²
    Contrast Ratio: 1000:1
    Response Time: 14 ms
    Color Support: 16.7 million colors
    Input Connectors: HDMI, VGA, DisplayPort
    Display Position Adjustments: Tilt
    Voltage: AC 100/240 V (50/60 Hz)
    Dimensions (WxDxH) - with stand: 19.3 in x 1.9 in x 11.8 in
    Weight: 7.94 lbs
    Compliant Standards: UL, cUL, FCC Part 15 B, RoHS2
    Manufacturer Warranty: 3-year warranty
    Bundled with: 3-Years Warranty Planar Customer First
  • General
    Display Type: LED-backlit LCD monitor / TFT active matrix
    Energy Class: Class E
    Diagonal Size: 22"
    Viewable Size: 21.5"
    Aspect Ratio: 16:9
    Native Resolution: Full HD (1080p) 1920 x 1080
    Pixel Pitch: 0.24825 mm
    Brightness: 250 cd/m²
    Brightness w/touchscreen: 212 cd/m²
    Contrast Ratio: 1000:1
    Color Support: 16.7 million colors
    Response Time: 14 ms
    Vertical Refresh Rate: 55 - 75 Hz
    Horizontal Viewing Angle: 178
    Vertical Viewing Angle: 178
    Backlight Technology: LED backlight
    Features: HDCP, LED edgelight system, HID Compliant
    Dimensions (WxDxH): 19.3 in x 1.9 in x 11.8 in - with stand
    Weight: 7.94 lbs
    Bundled with: 3-Years Warranty Planar Customer First
  • Audio
    Type: Speakers - stereo
    Output Power / Channel: 2 Watt
  • Input
    Type: Touchscreen - touchscreen
    Movement Detection Technology: Projected capacitive
  • Connectivity
    Interfaces: HDMI ¦ VGA ¦ DisplayPort (HDCP) ¦ Audio line-in ¦ USB (Type B) ¦ Headphones (mini-jack)
  • Mechanical
    Display Position Adjustments: Tilt
    Tilt Angle: +15/+70
    VESA Mounting Interface: 100 x 100 mm
  • Miscellaneous
    Features: Security lock slot (cable lock sold separately)
    Cables Included: 1 x VGA cable ¦ 1 x audio cable ¦ 1 x USB cable - USB Type A to B ¦ 1 x DisplayPort cable
    Compliant Standards: UL, cUL, FCC Part 15 B, RoHS2
    Security Slot Type: Kensington security slot
  • Power
    Input Voltage: AC 100/240 V (50/60 Hz)
    Power Consumption (On mode): 14.4 W
    Power Consumption SDR (On mode): 14.4 kWh/1000h
    Power Consumption (Typical): 27 Watt
    Power Consumption Stand by: 0.5 Watt
    Power Consumption (Off Mode): 0.5 Watt
  • Software / System Requirements
    OS Required: Microsoft Windows 7 / 8 / 10
  • Dimensions & Weight (Shipping)
    Shipping Weight: 10.14 lbs
  • Manufacturer Warranty
    Service & Support: Limited warranty - advance hardware replacement - 3 years - response time: 2 days
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 104 °F
    Humidity Range Operating: 10 - 90% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43211902
BRANDSPLANAR SYSTEMS
UNSPSC43211902
Part#PLR-997-8286-00
MFG Part#997-8286-00
UPC810689003120
Movement Detection TechnologyProjected capacitive
Device TypeLED-backlit LCD monitor - 22" - touchscreen
Backlight TechnologyLED backlight
Energy ClassClass E
Aspect Ratio16:9
Response Time14 ms
TypeTouchscreen - touchscreen
Native ResolutionFull HD (1080p) 1920 x 1080
Display TypeLED-backlit LCD monitor / TFT active matrix
