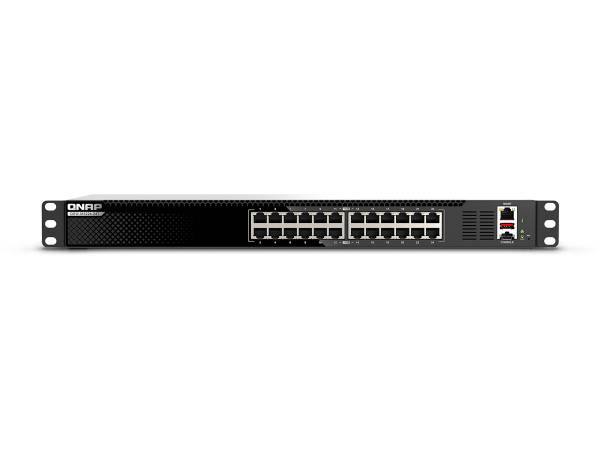

QNAP RACKMOUNT SWITCH QSW-M3224-24T-US, L3 LITE MANAGED SWITCH, 24 PORTS OF 10GBE NBASE-T (10G/5G/2.5G/1G/100M), EASY MANAGEMENT WITH WEB 8007200
SKU
8007200
CA$1,809.12
QNAP RACKMOUNT SWITCH QSW-M3224-24T-US, L3 LITE MANAGED SWITCH, 24 PORTS OF 10GBE NBASE-T (10G/5G/2.5G/1G/100M), EASY MANAGEMENT WITH WEB BROWSER
Category: Hubs & Switches
- Primary Information
Product Description: QNAP QSW-M3224-24T - switch - 24 ports - managed - rack-mountable Device Type: Switch - 24 ports - L3 Lite - managed Enclosure Type: Rack-mountable Subtype: 10 Gigabit Ethernet Ports: 24 x 100/1000/2.5G/5G/10GBase-T Performance: Non-blocking switching throughput: 240 Gbps ¦ Switching capacity: 480 Gbps MAC Address Table Size: 32K entries Jumbo Frame Support: 9KB Features: Web-based management, 5 fans, reset button, port configuration, Jumbo Frames support, auto-negotiation, port-based QoS, CoS, DSCP based QoS, ToS, rate limit, LACP, AV Over IP, IGMP querier, IGMP snooping, RSTP support, Simple Multicast Flooding Prevention, ACL support, auto firmware update, DHCP client, DHCP server, DNS client, LLDP support, loop protection, Qfinder Pro, SNTP client, static routing, system log, MC-LAG Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1p Power: AC 100-240 V (50/60 Hz) Dimensions (WxDxH): 17.3 in x 7.5 in x 1.7 in Weight: 6.46 lbs Manufacturer Warranty: 2-year warranty - General
Device Type: Switch - 24 ports - L3 Lite - managed Enclosure Type: Rack-mountable Subtype: 10 Gigabit Ethernet Ports: 24 x 100/1000/2.5G/5G/10GBase-T Performance: Non-blocking switching throughput: 240 Gbps ¦ Switching capacity: 480 Gbps MAC Address Table Size: 32K entries Jumbo Frame Support: 9KB Features: Web-based management, 5 fans, reset button, port configuration, Jumbo Frames support, auto-negotiation, port-based QoS, CoS, DSCP based QoS, ToS, rate limit, LACP, AV Over IP, IGMP querier, IGMP snooping, RSTP support, Simple Multicast Flooding Prevention, ACL support, auto firmware update, DHCP client, DHCP server, DNS client, LLDP support, loop protection, Qfinder Pro, SNTP client, static routing, system log, MC-LAG Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3an, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3ad (LACP), IEEE 802.1ab (LLDP), IEEE 802.1p Status Indicators: Link/activity/speed, power, status, fan, locator - Expansion / Connectivity
Interfaces: 24 x 10Gbit LAN RJ-45 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 1 x console USB Type-C - Power
Power Device: Internal power supply Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 116.9 Watt - Miscellaneous
Included Accessories: Power cord Rack Mounting Kit: Included Compliant Standards: FCC, VCCI, BSMI, Class A - Dimensions & Weight
Width: 17.3 in Depth: 7.5 in Height: 1.7 in Weight: 6.46 lbs - Dimensions & Weight (Shipping)
Shipping Weight: 9.92 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | QNAP |
|---|---|
| UNSPSC | 43222612 |
| Part# | QNP-QSW-M3224-24T-US |
| MFG Part# | QSW-M3224-24T-US |
| UPC | 885022027712 |
| Device Type | Switch - 24 ports - L3 Lite - managed |
| Enclosure Type | Rack-mountable |
