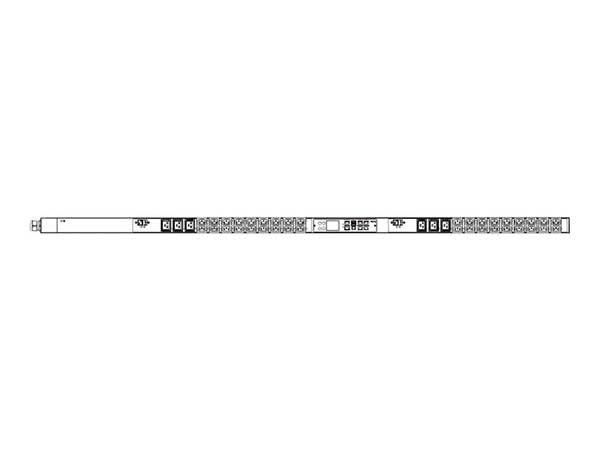

RARITAN 1PH, 208V AC, 30A (24A RATED); 42 OUTLETS: 36X C13, 6X C19; PLUG: NEMA L6-30P (BOTTOM-BOTTOM FEED), 5.0KVA; UNIT METERED, ZERO U VERTICAL PDU, 7998681
SKU
7998681
CA$1,502.78
1PH, 208V AC, 30A (24A RATED); 42 OUTLETS: 36X C13, 6X C19; PLUG: NEMA L6-30P (BOTTOM-BOTTOM FEED), 5.0KVA; UNIT METERED, ZERO U VERTICAL PDU, SECURELOCK READY, HIGH RESOLUTION COLOR DISPLAY WITH FIELD REPLACEABLE CONTROLLER, ETHERNET, SERIAL, 2X USB-A, USB-B AND SENSOR CONNECTIONS
Category: Power Distribution Units
- Primary Information
Product Description: Raritan PX intelligent PX3-1862V-C5 - power distribution unit - 5000 VA Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Input Wiring: 1-phase Input Voltage: AC 208 V Output Voltage: AC 208 V Power Capacity: 5000 VA Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V Input Connectors: 1 x power NEMA L6-30P Output connectors: 36 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus Color: Black powder coat Dimensions (WxDxH): 2 in x 2.2 in x 70.1 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft Color: Black powder coat - Power Device
Input Voltage: AC 208 V Input Voltage Range: AC 200 - 240 V Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L6-30P Power Output Connectors Details: 36 x power IEC 60320 C13 - 208 V 12 A ¦ 6 x power IEC 60320 C19 - 208 V 16 A Output Voltage: AC 208 V Max Electric Current: 24 A Power Capacity: 5000 VA Power Capacity Details: 4.8 kVA at 200 V, 5.8 kVA at 240 V Circuit Protection: Circuit breaker - Networking
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus - Expansion / Connectivity
Interfaces: 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x cascading - RJ-45 ¦ 1 x management (RS-232) - RJ-45 ¦ 1 x sensor ¦ 1 x monitoring - RJ-45 - Miscellaneous
Cables Included: Power cable - integrated - 10 ft Features: Horizontal orientation, LCD display, voltage monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, splash-proof plug, metering per input line, metering per branch circuit breaker, replaceable controller, cord retention outlet, power cable IP44 compliant Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, cULus - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Max Operating Temperature: 140 °F Humidity Range Operating: 85% - Dimensions & Weight
Width: 2 in Depth: 2.2 in Height: 70.1 in - Dimensions & Weight (Shipping)
Shipping Width: 19.7 in Shipping Depth: 6.3 in Shipping Height: 88.2 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | RARITAN |
|---|---|
| UNSPSC | 39121017 |
| Part# | RAR-PX3-1862V-C5 |
| MFG Part# | PX3-1862V-C5 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black powder coat |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, HTTPS, JSON-RPC, Modbus, SMTP, SNMP 2, SNMP 3, SSH, Telnet |
