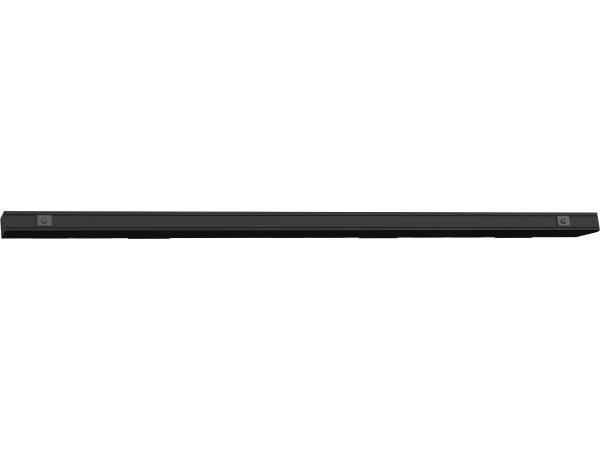

RARITAN 3PH, 208V, 50A (DERATED TO 40A), 24 OUTLETS: 12 X LOCKING C13, 12 X LOCKING CX, INPUT: CS8365C 50A, 0U, 14.4KVA, 6 X 10KAIC BREAKERS, OUTLET 7251882
SKU
7251882
CA$4,435.45
3PH, 208V, 50A (DERATED TO 40A), 24 OUTLETS: 12 X LOCKING C13, 12 X LOCKING CX, INPUT: CS8365C 50A, 0U, 14.4KVA, 6 X 10KAIC BREAKERS, OUTLET METERED AND SWITCHED, IX CONTROLLER WITH 2 X 10/100/1000 ETH PORT, 2 X USB-A, 1 X USB-B, RJ-45 SENSOR AND PDU
Category: Power Distribution Units
- Primary Information
Product Description: Raritan PX4-5547-E7V2 - power distribution unit - 14400 VA Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 48.5 lbs Input Wiring: 3-phase delta Input Voltage: AC 208 V Output Voltage: AC 208 V Power Capacity: 14400 VA Power Capacity Details: 14.4 kVA at 208 V, 16.6 kVA at 240 V Input Connectors: Power CS8365C Output connectors: 12 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 Cx 16 A Networking: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus TCP Color: Black powder coat Dimensions (WxDxH): 2.2 in x 2.6 in x 6 ft Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft Color: Black powder coat - Power Device
Input Voltage: AC 208 V Input Voltage Range: AC 208 - 240 V Input Wiring: 3-phase delta Frequency Required: 50/60 Hz Input Connectors: Power CS8365C Power Output Connectors Details: 12 x power IEC 60320 C13 12 A ¦ 12 x power IEC 60320 Cx 16 A Output Voltage: AC 208 V Max Electric Current: 40 A Power Capacity: 14400 VA Power Capacity Details: 14.4 kVA at 208 V, 16.6 kVA at 240 V - Networking
Remote Management Interface: Ethernet 10/100, RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus TCP - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B ¦ 2 x USB - 4 pin USB Type A ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 ¦ 1 x management (Gigabit Ethernet) - RJ-45 ¦ 1 x management (Fast Ethernet) - RJ-45 - Miscellaneous
Cables Included: Power cable 10 ft Features: Hot-swappable controllers, tool-less button mount, extruded aluminum housing, LCD display, humidity monitoring, current meter, overload protection, cascadable, active power meter, real power meter, energy meter, power factor meter, temperature sensor, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, switched, bottom-front feed cord entry, Auto-Flip Current Display, voltage meter, environmental sensor ready, 6 x J62-X0 overload protection Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Max Operating Temperature: 140 °F Humidity Range Operating: 85% - Dimensions & Weight
Width: 2.2 in Depth: 2.6 in Height: 6 ft Weight: 48.5 lbs - Dimensions & Weight (Shipping)
Shipping Width: 10 in Shipping Depth: 4.9 in Shipping Height: 6.4 ft Shipping Weight: 67.02 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | RARITAN |
|---|---|
| UNSPSC | 39121017 |
| Part# | RAR-PX4-5547-E7V2 |
| MFG Part# | PX4-5547-E7V2 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black powder coat |
| Remote Management Protocol | HTTP, HTTPS, JSON-RPC, Modbus TCP, SMTP, SNMP 2, SNMP 3, SSH, Telnet |
