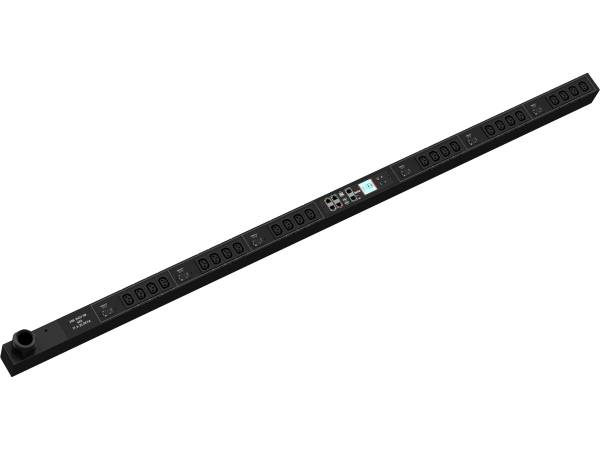

RARITAN 3PH, 208V, 50A(DERATED TO 40A), 36 OUTLETS:18 X LOCKING C13, 18 X LOCKING CX, INPUT:CS8365C 50A, 0U, 14.4KVA, 6 X 10KAIC BREAKERS, OUTLET 7251860
SKU
7251860
CA$5,593.23
3PH, 208V, 50A(DERATED TO 40A), 36 OUTLETS:18 X LOCKING C13, 18 X LOCKING CX, INPUT:CS8365C 50A, 0U, 14.4KVA, 6 X 10KAICBREAKERS, OUTLET METERED AND SWTCHD, IX CONTRLLR WITH 2 X 10/100/1000 ETH PORT, 2 X USB-A, 1 X USB-B, RJ-45 SENSOR AND PDU LINK PORT
Category: Power Distribution Units
- Primary Information
Product Description: Raritan PX4-5072-E7V2 - power distribution unit - 14400 VA Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 0U Weight: 66.58 lbs Input Wiring: 3-phase Input Voltage: AC 208 V Output Voltage: AC 208 V Power Capacity: 14400 VA Power Capacity Details: 14.4 kVA at 208 V, 16.6 kVA at 240 V Input Connectors: Power CS8365C Output connectors: 18 x power IEC 60320 C13 - 208 V 12 A ¦ 18 x power IEC 60320 Cx - 208 V 16 A Networking: RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus TCP Color: Black powder coat Dimensions (WxDxH): 2.2 in x 2.6 in x 70.1 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 10 ft Color: Black powder coat - Power Device
Input Voltage: AC 208 V Input Voltage Range: AC 208 - 240 V Input Wiring: 3-phase Frequency Required: 50/60 Hz Input Connectors: Power CS8365C Power Output Connectors Details: 18 x power IEC 60320 C13 - 208 V 12 A ¦ 18 x power IEC 60320 Cx - 208 V 16 A Output Voltage: AC 208 V Max Electric Current: 50 A Power Capacity: 14400 VA Power Capacity Details: 14.4 kVA at 208 V, 16.6 kVA at 240 V - Networking
Remote Management Interface: RS-232, USB, Ethernet 10/100/1000 Remote Management Protocol: SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP, Modbus TCP - Expansion / Connectivity
Interfaces: 2 x management (Gigabit Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x PDU link - RJ-45 ¦ 1 x sensor - RJ-45 - Miscellaneous
Cables Included: Power cable 10 ft Features: Vertical orientation, tool-less mounting, extruded aluminum housing, current meter, cascadable, active power meter, real power meter, energy meter, power factor meter, Raritan SecureLock Ready, remote outlet switching, metering per input line, metering per branch circuit breaker, metering per output receptacle, locking outlets, crest factor meter, hot-swappable controller, bottom-front feed cord entry, voltage meter, environmental sensor ready, 6 x J62-X0 overload protection Compliant Standards: UL, ICES-003, RoHS, FCC Part 15 A, Redfish API - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Max Operating Temperature: 140 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 2.2 in Depth: 2.6 in Height: 70.1 in Weight: 66.58 lbs - Dimensions & Weight (Shipping)
Shipping Width: 4.9 in Shipping Depth: 10 in Shipping Height: 76.4 in Shipping Weight: 66.58 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | RARITAN |
|---|---|
| UNSPSC | 39121017 |
| Part# | RAR-PX4-5072-E7V2 |
| MFG Part# | PX4-5072-E7V2 |
| Device Type | Power distribution unit - rack-mountable |
| Color | Black powder coat |
| Remote Management Protocol | HTTP, HTTPS, JSON-RPC, Modbus TCP, SMTP, SNMP 2, SNMP 3, SSH, Telnet |
