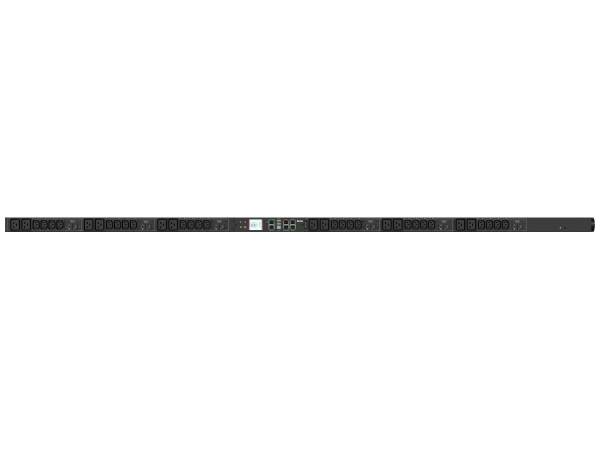

RARITAN 3PH, 208V AC, 60A (48A/PH RATED); 36 OUTLETS: 24X C13, 12X C19; PLUG: IEC 60309 3P+E 9H 60A (DELTA BOTTOM-BOTTOM FEED), 17.3KVA 8161329
SKU
8161329
CA$3,269.95
3PH, 208V AC, 60A (48A/PH RATED); 36 OUTLETS: 24X C13, 12X C19; PLUG: IEC 60309 3P+E 9H 60A (DELTA BOTTOM-BOTTOM FEED), 17.3KVA; UNIT METERED, ZERO U VERTICAL PDU, SECURELOCK READY, V2 OUTLET SEQUENCE, HIGH RESOLUTION COLOR DISPLAY WITH FIELD REPLACEABLE CONTROLLER, ETHERNET, SERIAL, 2X USB-A, USB-B AND SENSOR CONNECTIONS
Category: Power Distribution Units
- Primary Information
Power / Device Type: Power Distribution Unit Power Device / Form Factor: 1U Voltage Output: 240V Power / Voltage Required: 208V Power Provided (VA): 17300 VA Interfaces & Connections: (10/100/1000 Base T) Ethernet, Secondary redundant (10/100/1000 Base T) Ethernet Input Connector(s): 208V Delta 60A IEC 60309 3P+G 9Hr Output Connector(s): (24) C13, (12) C19 Electric Current: 48A Model: PX3-1905V-V2N1 Width: 45 Mm Depth: 80 Mm Height: 1780 Mm Service & Support Type: Standard 2 years manufacturer warranty Features: Link up to 8 PDUs where the Primary PDU has knowledge and power information from the attached Expansion PDUs. Redundant power from the first expansion unit ensures uptime even if the Primary PDU loses power. - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | RARITAN |
|---|---|
| UNSPSC | 39121017 |
| Part# | RAR-PX3-1905V-V2N1 |
| MFG Part# | PX3-1905V-V2N1 |
| Power / Device Type | Power Distribution Unit |
| Power Device / Form Factor | 1U |
| Electric Current | 48A |
