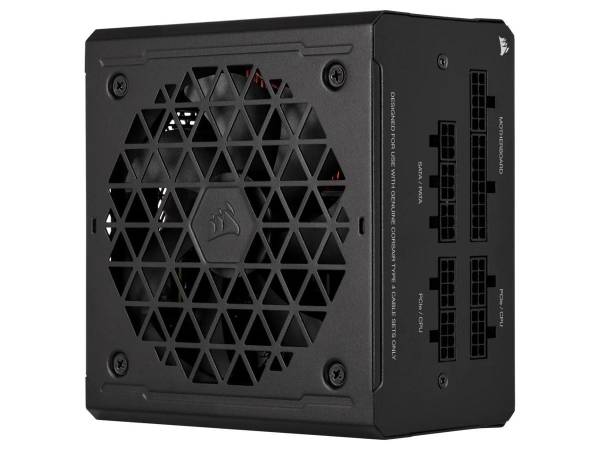

RM SERIES, RM650, 650 WATT, 80 PLUS GOLD CERTIFIED, FULLY MODULAR POWER SUPPLY 7442839
SKU
7442839
CA$100.00
RM SERIES, RM650, 650 WATT, 80 PLUS GOLD CERTIFIED, FULLY MODULAR POWER SUPPLY
Category: Power Supplies
- Primary Information
Product Description: CORSAIR RM Series RM650 - power supply - 650 Watt Device Type: Power supply Specification Compliance: ATX12V 2.53 / EPS12V 80 PLUS Certification: 80 PLUS Gold Localization: North America Input Voltage: AC 100-240 V Output Voltage: +3.3, +5, ±12 V Power Capacity: 650 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A Output connectors: 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 7 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power Modular Cable Management: Yes Cooling System: 120 mm fan Dimensions (WxDxH): 5.9 in x 5.5 in x 3.4 in Manufacturer Warranty: 7-year warranty - General
Device Type: Power supply Specification Compliance: ATX12V 2.53 / EPS12V PSU Form Factor: ATX Localization: North America - Power Device
Input Voltage: AC 100-240 V Frequency Required: 50 - 60 Hz Power Output Connectors Details: 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 7 x 15 pin Serial ATA power ¦ 4 x 4 pin internal power Output Voltage: +3.3, +5, ±12 V Power Capacity: 650 Watt Output Current: +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 5 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A Efficiency: 90% Modular Cable Management: Yes 80 PLUS Certification: 80 PLUS Gold - Miscellaneous
Cables Included: AC power cable ¦ Power 24 pin ATX with detachable 4 pin section modular cable 2 ft ¦ 2 x power 8 pin +12V with detachable 4 pin section modular cable 2 ft ¦ 2x 8 pin PCI Express power with detachable 2 pin section modular cable 2.5 ft ¦ Power 15 pin SATA cable 2.3 ft ¦ 4 pin internal power cable 2.5 ft ¦ Power 15 pin SATA cable 2.6 ft MTBF: 100,000 hours Cooling System: 120 mm fan Features: DC-DC technology, Zero RPM fan mode, rifle bearing cooling fan, fully modular, LLC resonant converter technology - Manufacturer Warranty
Service & Support: Limited warranty - 7 years - Dimensions & Weight
Width: 5.9 in Depth: 5.5 in Height: 3.4 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121004
| BRANDS | CORSAIR MEMORY |
|---|---|
| UNSPSC | 39121004 |
| Part# | CME-CP-9020280-NA |
| MFG Part# | CP-9020280-NA |
| UPC | 840006670698 |
| Device Type | Power supply |
| 80 PLUS Certification | 80 PLUS Gold |
| Efficiency | 90% |
