S2224 CAMERA STN F/HD SERVEILLANCE 6386579
SKU
6386579
CA$6,919.68

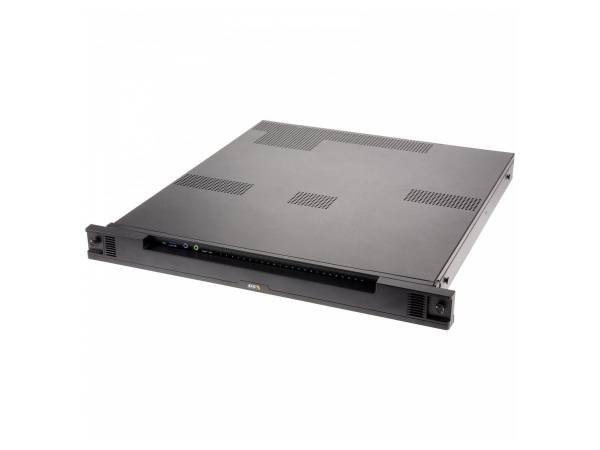

AXIS Camera Station S2224 Appliance is a twenty four channel Client/Server for rack-mounting including an integrated managed PoE switch validated and tested with Axis products. Preloaded with AXIS Camera Station software with preconfigured AXIS Camera Station settings and all other necessary software e.g. Windows 10 IoT. Includes 12 TB storage, Core licenses for 24 devices, 5-year limited hardware warranty on the appliance and hard drives. Supports up to 4k ultra HD.
Category: DVRs & Security Storage
- Primary Information
System Type: Server Model: S2224 Cabinet Form Factor: 1U Processor / Type: Core i5 Processor / Manufacturer: Intel RAM / Total Installed Size: 8 GB Hard Drive / Type: HDD Hard Drive Capacity / HDD: 6 TB Hard Drive / Installed Qty: 2 Hard Drive / Bays Qty: 4 RAID Level: RAID 0, 1, 10 Video Output Type: Video streaming Live view: 1 x 4K stream full screen 4 split x 1080p Up to 24 cameras split view Supports two monitors, maximum one 4K monitor recommended Graphics Controller: Intel HD Graphics Video Memory / Installed Size: None GB Operating System: Microsoft Windows 10 IoT Enterprise Power / Device Type: Power Supply Power / Voltage Required: 100 - 240 V Interfaces & Connections: Front side: 1x USB 3.0 1x Audio line in 1x Audio line out Rear side Switch: 24x PoE ports 10/100 Mbps 1x SFP 10/100/1000 Mbps 1x RJ45 10/100/1000 Mbps Rear side Server: 1x RJ45 10/100/1000 Mbps 2x USB 2.0 1 Displayport 1 HDMI port Width: 18.7 Inch Depth: 17.3 Inch Height: 1.8 Inch Weight: 11 Kg Min Operating Temperature: 0C Operating System Required: 40C Max Operating Temperature: 10-90% RH (non-condensing - Processor
Processor / Type: Core i5 Processor / Manufacturer: Intel - RAM
RAM / Total Installed Size: 8 GB - Storage
Hard Drive / Type: HDD Hard Drive Capacity / HDD: 6 TB Hard Drive / Installed Qty: 2 Hard Drive / Bays Qty: 4 - Storage Controller
RAID Level: RAID 0, 1, 10 - Video
Video Output Type: Video streaming Live view: 1 x 4K stream full screen 4 split x 1080p Up to 24 cameras split view Supports two monitors, maximum one 4K monitor recommended Graphics Controller: Intel HD Graphics Video Memory / Installed Size: None GB - Power
Power / Device Type: Power Supply Power / Voltage Required: 100 - 240 V - Expansion
Interfaces & Connections: Front side: 1x USB 3.0 1x Audio line in 1x Audio line out Rear side Switch: 24x PoE ports 10/100 Mbps 1x SFP 10/100/1000 Mbps 1x RJ45 10/100/1000 Mbps Rear side Server: 1x RJ45 10/100/1000 Mbps 2x USB 2.0 1 Displayport 1 HDMI port - Dimensions&Miscellaneous
Width: 18.7 Inch Depth: 17.3 Inch Height: 1.8 Inch - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 52161516
| BRANDS | AXIS COMMUNICATIONS |
|---|---|
| UNSPSC | 52161516 |
| Part# | ACI-01583-004 |
| MFG Part# | 01583-004 |
| UPC | 7331021065475 |
| RAM / Total Installed Size | 8 GB |
| Processor / Manufacturer | Intel |
| Video Memory / Installed Size | None GB |
| Hard Drive / Installed Qty | 2 |
| Hard Drive / Bays Qty | 4 |
| Hard Drive / Type | HDD |
| RAID Level | 1, 10, RAID 0 |
| Hard Drive Capacity / HDD | 6 TB |
| Processor / Type | Core i5 |
| Cabinet Form Factor | 1U |
| Graphics Controller | Intel HD Graphics |
| Power / Device Type | Power Supply |
| Operating System | Microsoft Windows 10 IoT Enterprise |
| System Type | Server |
