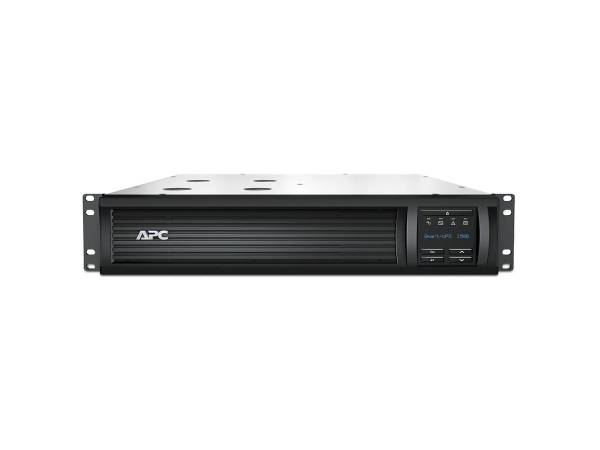

SCHNEIDER SMART-UPS 1500VA LCD RM 2U 120V 6005935
SKU
6005935
CA$1,550.00
APC SMT1500RM2UC - UPS - 2U - line-interactive - 120 V - 1000Watt - 1440VA - USB - 6 NEMA 5-15R - Black - 3 years repair or replace (excluding battery) and 2 years for battery
Category: UPS
- Primary Information
Product Description: APC Smart-UPS SMT1500RM2UC - UPS - 1 kW - 1440 VA - with APC SmartConnect Device Type: UPS - rack-mountable Rack Size: 2U Weight: 58.42 lbs Input Voltage: AC 120 V Output Voltage: AC 120 V ± 5% Power Capacity: 1 kW / 1440 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 6 x power NEMA 5-15R Battery: Lead acid Batteries Qty: 1 1 Run Time (Up To): 7.2 min at full load Networking: Serial, USB Color: Black Dimensions (WxDxH): 17 in x 18.8 in x 3.4 in Environmental Standards: ENERGY STAR Manufacturer Warranty: 3-year warranty Bundled with: APC SmartConnect Designed For: P/N: AR3140G, AR3340G, AR4018IX429, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC, SMX2000LVNCUS, SMX2000LVUS, SRT1000RMXLA, SYAF8KRMTX424 - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Color: Black Bundled with: APC SmartConnect - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 82 - 144 V Input Voltage Range (Adjustable): AC 75 - 154 V Frequency Provided: 50/60 Hz ± 3Hz Frequency Required: 50/60 Hz ± 3Hz Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 6 x power NEMA 5-15R Output Voltage: AC 120 V ± 5% - 50/60 Hz Power Capacity: 1 kW / 1440 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 680 Joules Circuit Protection: Circuit breaker Efficiency: 98.3% at 100% Load, 97.2% at 25% Load, 98.2% at 50% Load, 98.3% at 75% Load - Battery
Quantity: 1 1 Technology: Lead acid Run Time (Up To): 7.2 min at full load ¦ 335 min at 50 Watts ¦ 190 min at 100 Watts ¦ 92 min at 200 Watts ¦ 55.9 min at 300 Watts ¦ 37 min at 400 Watts ¦ 18.8 min at 600 Watts ¦ 14 min at 700 Watts ¦ 10.8 min at 800 Watts ¦ 8.6 min at 900 Watts ¦ 25.9 min at 500 Watts Recharge Time: 3 hours Transfer Time: 6 ms Features: Maintenance free, sealed, leak-proof - Networking
Remote Management Interface: Serial, USB - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B Expansion Slots: 1 (total) / 1 (free) x SmartSlot - Miscellaneous
Cables Included: Serial cable - external ¦ USB cable - external ¦ Power cable - integrated - 8 ft Rack Mounting Kit: Included Equipment Protection Value: 150000 US Dollars Features: Automatic Voltage Regulation (AVR), cold-start function, energy meter, LCD display, hot-swappable batteries, audible alarm, automatic self-test, LED indicators Compliant Standards: RoHS, UL 1449, REACH, CSA C22.2 No. 107.1, FCC Part 15 Class B, ICES-003, UL 1778, CSA - Software / System Requirements
Software Included: Drivers & Utilities - Sustainability Information
ENERGY STAR: Yes - Manufacturer Warranty
Service & Support: Limited warranty - replace or repair - 3 years ¦ Limited warranty - batteries - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% Sound Emission: 45 dBA - Dimensions & Weight
Width: 17 in Depth: 18.8 in Height: 3.4 in Weight: 58.42 lbs - Dimensions & Weight (Shipping)
Shipping Width: 23.2 in Shipping Depth: 24 in Shipping Height: 9.3 in Shipping Weight: 70.81 lbs - Compatibility Information
Designed For: P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SRT1000RMXLA, SU2200R3X167, SYAF8KRMTX424 - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | AMERICAN POWER CONVERSION |
|---|---|
| UNSPSC | 39121011 |
| Part# | APC-SMT1500RM2UC |
| MFG Part# | SMT1500RM2UC |
| UPC | 731304322801 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Color | Black |
| Efficiency | 97.2% at 25% Load, 98.2% at 50% Load, 98.3% at 100% Load, 98.3% at 75% Load |
| Circuit Protection | Circuit breaker |
