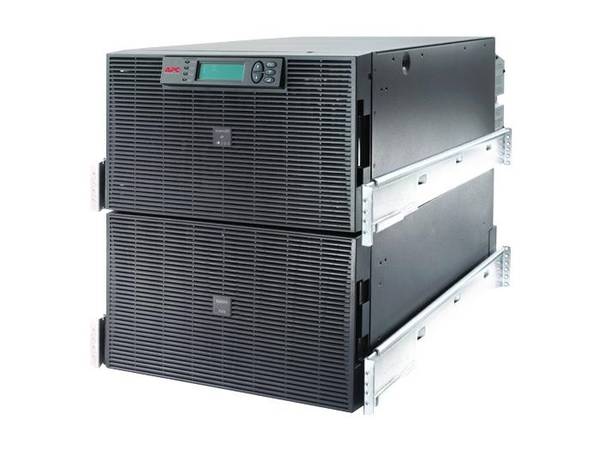

SCHNEIDER SMART-UPS RT 18K 4827801
SKU
4827801
CA$36,900.00
APC Smart-UPS On-Line, 16 kW / 18 kVA, Input 200V / Output 200V , Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, Smart-Slot , Extended runtime model , Rack Height 12 U
Category: UPS
- Primary Information
Product Description: APC Smart-UPS RT 18KVA RM - UPS - 16 kW - 18000 VA Device Type: UPS - rack-mountable Rack Size: 12U Weight: 546.74 lbs Input Voltage: AC 200 V Output Voltage: AC 200 V ± 5% Power Capacity: 16 kW / 18000 VA Input Connectors: Hardwire 3-wire (2PH + G) Output connectors: 1 x hardwire 3-wire (2PH + G) Battery: Lead acid Battery Form Factor: Plug-in module Batteries Qty: 4 Networking: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP, HTTP Color: Black Dimensions (WxDxH): 17 in x 30.4 in x 21 in Manufacturer Warranty: 2-year warranty Designed For: P/N: AR2200, AR2280, AR2487G, AR3100TAA, AR3100W, AR3103SP, AR3105SP, AR3105W, AR3106SP, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, NBWL0356A - General
Device Type: UPS - rack-mountable Battery Enclosure Type: Plug-in module Height (Rack Units): 12U Color: Black - Power Device
UPS Technology: On-line Input Voltage: AC 200 V Input Voltage Range: AC 160 - 280 V Input Voltage Range (Adjustable): AC 100 - 280 V Frequency Provided: 50/60 Hz Frequency Required: 40 - 70 Hz Input Connectors: Hardwire 3-wire (2PH + G) Power Output Connectors Details: 1 x hardwire 3-wire (2PH + G) Output Voltage: AC 200 V ± 5% - 50/60 Hz Power Capacity: 16 kW / 18000 VA Output Waveform: Sinewave Surge Suppression: Yes Circuit Protection: Circuit breaker - Battery
Quantity: 4 Technology: Lead acid Voltage Provided: 192 V Recharge Time: 2.5 hours - Networking
Remote Management Interface: Ethernet 10/100, RS-232 Remote Management Protocol: SNMP, HTTP - Expansion / Connectivity
Interfaces: 1 x management (RS-232) ¦ 1 x management (Ethernet) - RJ-45 ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x SmartSlot - Miscellaneous
Cables Included: Serial cable - external Rack Mounting Kit: Included Features: Audible alarm, emergency power off, LCD display, internal bypass Compliant Standards: UL 1449, VDE, IEC 62040-1-1, RoHS Exemption 7b, IEC 62040-2 - Software / System Requirements
Software Included: Drivers & Utilities - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% Sound Emission: 59 dBA - Dimensions & Weight
Width: 17 in Depth: 30.4 in Height: 21 in Weight: 546.74 lbs - Dimensions & Weight (Shipping)
Shipping Width: 24 in Shipping Depth: 39.4 in Shipping Height: 39 in Shipping Weight: 692.24 lbs - Compatibility Information
Designed For: P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | AMERICAN POWER CONVERSION |
|---|---|
| UNSPSC | 39121011 |
| Part# | APC-SURT18KRMXLJ |
| MFG Part# | SURT18KRMXLJ |
| UPC | 731304267683 |
| Device Type | UPS - rack-mountable |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Color | Black |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, SNMP |
