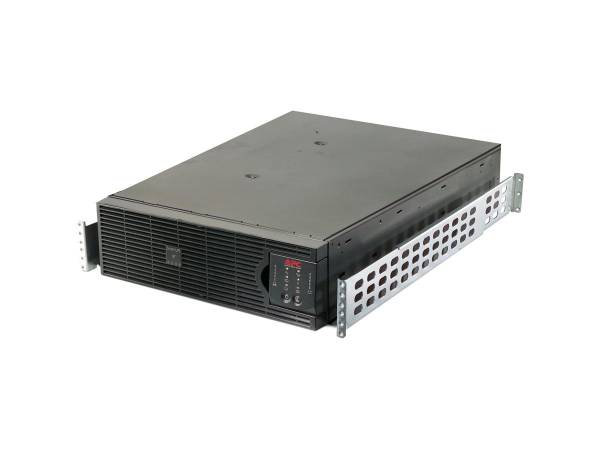

SCHNEIDER SMART-UPS RT 6000VA RM 200V TO 200/100V 4891002
SKU
4891002
Category: UPS
- Primary Information
Product Description: APC Smart-UPS RT 6000 - UPS - 4.2 kW - 6000 VA Device Type: UPS - rack-mountable Rack Size: 3U Weight: 128.31 lbs Localization: Japan Input Voltage: AC 100/200 V Output Voltage: AC 100/200 V ± 2% Power Capacity: 4.2 kW / 6000 VA Input Connectors: 1 x power NEMA L14-30 Output connectors: 4 x power NEMA 5-20 ¦ 1 x power NEMA L14-30 ¦ 1 x power NEMA L6-20 Battery: Lead acid Battery Form Factor: Plug-in module Batteries Qty: 1 Run Time (Up To): 4.4 min at full load Networking: Ethernet 10/100 Remote Management Protocol: SNMP 1, SNMP, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2 Color: Black Dimensions (WxDxH): 17 in x 28.9 in x 5.1 in Manufacturer Warranty: 2-year warranty Designed For: P/N: AR2200, AR2487G, AR3100W, AR3103, AR3103SP, AR3105SP, AR3105W, AR3106SP, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, NBWL0356A - General
Device Type: UPS - rack-mountable Battery Enclosure Type: Plug-in module Height (Rack Units): 3U Color: Black Localization: Japan - Power Device
UPS Technology: On-line Input Voltage: AC 100/200 V Frequency Provided: 50/60 Hz Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA L14-30 Power Output Connectors Details: 4 x power NEMA 5-20 ¦ 1 x power NEMA L14-30 ¦ 1 x power NEMA L6-20 Output Voltage: AC 100/200 V ± 2% - 50/60 Hz Power Capacity: 4.2 kW / 6000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 365 Joules - Battery
Quantity: 1 Technology: Lead acid Run Time (Up To): 4.4 min at full load ¦ 14.1 min at half load Recharge Time: 3 hours - Networking
Remote Management Interface: Ethernet 10/100 Remote Management Protocol: SNMP 1, SNMP, Telnet, SNMP 3, HTTP, HTTPS, SSH, SSH-2 - Expansion / Connectivity
Interfaces: 1 x management (Ethernet) - RJ-45 ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 0 (free) x SmartSlot - Miscellaneous
Cables Included: Serial cable - external ¦ Power cable - integrated - 10 ft Rack Mounting Kit: Included Features: Audible alarm, emergency power off, LED display, internal bypass, LED indicators Compliant Standards: CSA, UL 1449, UL 1778, RoHS Exemption 7b, FCC Part 15 A, REACH - Software / System Requirements
Software Included: Drivers & Utilities - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% Sound Emission: 55 dBA - Dimensions & Weight
Width: 17 in Depth: 28.9 in Height: 5.1 in Weight: 128.31 lbs - Dimensions & Weight (Shipping)
Shipping Width: 23.7 in Shipping Depth: 38.6 in Shipping Height: 13.7 in Shipping Weight: 159.39 lbs - Compatibility Information
Designed For: P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3357X674, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | AMERICAN POWER CONVERSION |
|---|---|
| UNSPSC | 39121011 |
| Part# | APC-SURTD6000RMXL3U |
| MFG Part# | SURTD6000RMXLJP3U |
| UPC | 731304258834 |
| Device Type | UPS - rack-mountable |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Color | Black |
| Remote Management Protocol | HTTP, HTTPS, SNMP, SNMP 1, SNMP 3, SSH, SSH-2, Telnet |
