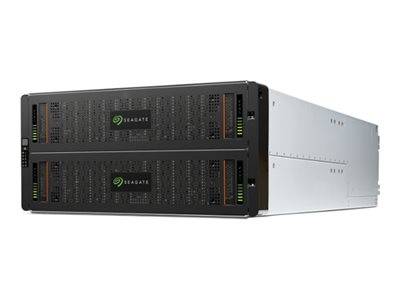

SEAGATE CORVAULT 5U84 RAID 12G SAS SELF HEALING MANAGED RACKMOUNT STORAGE SYSTEM - INCLUDES 1.5PB, 1.0M DEEP, ADVANCED DATA PROTECTION, AUTONOMOUS 7317168
SKU
7317168
CA$68,495.21
SEAGATE CORVAULT 5U84 RAID 12G SAS SELF HEALING MANAGED RACKMOUNT STORAGE SYSTEM - INCLUDES 1.5PB, 1.0M DEEP, ADVANCED DATA PROTECTION, AUTONOMOUS DRIVE REGENERATION (ADR), ADAPT REBUILD, 5-YEAR LIMITED WARRANTY
Category: Storage Enclosures & RAID Arrays
- Primary Information
Product Description: Seagate Exos CORVAULT 5U84 - hard drive array Device Type: Hard drive array Enclosure Type: Rack-mountable - 5U Total Array Capacity: 1.68 PB Interface: SAS 12Gb/s Installed Devices / Modules Qty: 84 (installed) / 84 (max) Supported Drives: SAS-3 Storage Controller: (SAS 12Gb/s) Storage Controller Quantity: 2 Hard Drive: 84 x 20 TB HDD SAS 12Gb/s - hot-swap - Seagate Power: AC 200-240 V 50/60 Hz Dimensions (WxDxH): 17.5 in x 38.6 in x 8.8 in Weight: 297.62 lbs Manufacturer Warranty: 2-year warranty - General
Device Type: Hard drive array Enclosure Type: Rack-mountable - 5U - Chassis
Installed Devices / Modules Qty: 84 Supported Devices / Modules Qty: 84 Supported Drives: SAS-3 - Storage
Total Array Capacity: 1.68 PB HDD Array External Interface: SAS 12Gb/s - Storage Controller
Installed Qty: 2 Interface Type: SAS 12Gb/s Data Transfer Rate: 1.2 GBps - Storage Controller (2nd)
Installed Qty: 2 - Hard Drive
Type: HDD - hot-swap Capacity: 84 x 20 TB Interface Type: SAS 12Gb/s Manufacturer: Seagate - Expansion / Connectivity
Expansion Bays: 84 (total) / 0 (free) x hot-swap - 3.5" Interfaces: 8 x SAS 12Gb/s - Mini SAS HD ¦ Ethernet 1000 (management) - RJ-45 - Miscellaneous
Features: Hot-swappable fans, hot-swappable controllers Compliant Standards: EN 61000-3-2, EN 61000-3-3, CCC, VCCI Class A, AS/NZS CISPR 22, RoHS 2011/65/EU, BIS, WEEE 2012/19/EU, EN 62368-1, IEC 62368-1, EN 55032, EN 55032:2015 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, UL 62368-1, NMB-003 Class A, WFD, FCC CFR 47 Part 15 Class A, CNS 15936 Class A, REACH 1907/2006/CE - Power
Power Device: Internal power supply - hot-plug Voltage Required: AC 200-240 V 50/60 Hz Power Provided: 2200 Watt - Dimensions & Weight
Width: 17.5 in Depth: 38.6 in Height: 8.8 in Weight: 297.62 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 41 °F Max Operating Temperature: 95 °F Humidity Range Operating: 10 - 80% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 24102001
| BRANDS | SEAGATE CLOUD SYSTEMS |
|---|---|
| UNSPSC | 24102001 |
| Part# | SEA-R5U84I1500S001 |
| MFG Part# | R5U84I1500S001 |
| Device Type | Hard drive array |
| Data Transfer Rate | 1.2 GBps |
| Type | HDD - hot-swap |
| Enclosure Type | Rack-mountable - 5U |
| Interface Type | SAS 12Gb/s |
