SERIAL CARD 2 PORT PCIE 16C1050 UART 5789391
SKU
5789391
CA$79.99

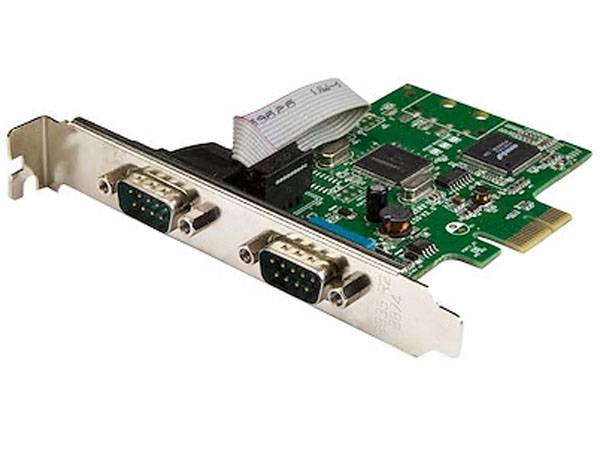

Add two RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot - 2-Port PCIe Serial Card with 16C1050 UART - RS232 - Dual Channel UART supports 16C1050 devices - 2-port PCIe RS232 serial card / PCI serial adapter
Category: Port Replicators & Docks
- Primary Information
Product Description: StarTech.com 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card (PEX2S1050) - serial adapter - PCIe - RS-232 x 2 Device Type: Serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express x1 PCI Specification Revision: PCIe 1.0a Ports: RS-232 x 2 Dimensions (WxDxH): 4.7 in x 4.1 in x 0.8 in Weight: 2.15 oz Data Link Protocol: RS-232 Data Transfer Rate: 460.8 Kbps System Requirements: Linux 2.4 - 2.6.x, Microsoft Windows 98 Second Edition, Microsoft Windows 95, Microsoft Windows Millennium Edition, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 Manufacturer Warranty: 2-year warranty - General
Device Type: Serial adapter Form Factor: Plug-in card - low profile Interface (Bus) Type: PCI Express x1 PCI Specification Revision: PCIe 1.0a - Networking
Ports: RS-232 x 2 Connectivity Technology: Wired Data Link Protocol: RS-232 Data Transfer Rate: 460.8 Kbps Features: Full duplex mode, 128-byte FIFO, software flow control - Expansion / Connectivity
Interfaces: 2 x RS-232 - 9 pin D-Sub (DB-9) - Miscellaneous
Included Accessories: 2 x low-profile bracket Compliant Standards: RoHS, FCC, WEEE, WHQL - Software / System Requirements
Software Included: Drivers & Utilities OS Required: Linux 2.4 - 2.6.x, Microsoft Windows 98 Second Edition, Microsoft Windows 95, Microsoft Windows Millennium Edition, Microsoft Windows XP / Vista / 7 / 8 / 8.1 / 10 - Dimensions & Weight
Width: 4.7 in Depth: 4.1 in Height: 0.8 in Weight: 2.15 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 176 °F Humidity Range Operating: 5 - 85% - Special Feature
COO: TAIWAN - UNSPSC Code
UNSPSC Code: 43211503
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43211503 |
| Part# | STC-PEX2S1050 |
| MFG Part# | PEX2S1050 |
| UPC | 65030868297 |
| Device Type | Serial adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 460.8 Kbps |
| Form Factor | Plug-in card - low profile |
| Data Link Protocol | RS-232 |
