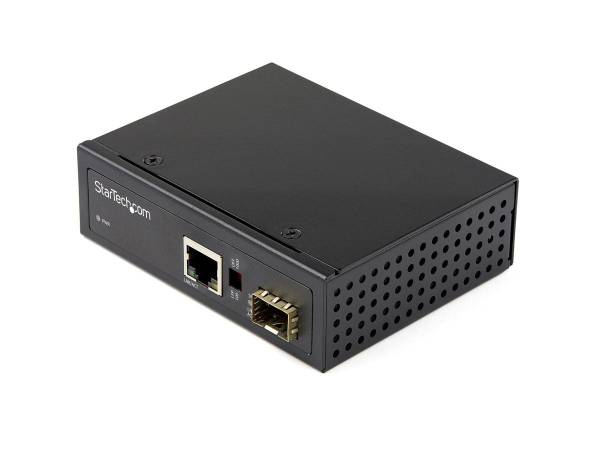

SFP FIBER TO ETHERNET MEDIA CONVERTER 6666546
SKU
6666546
CA$301.99
Fiber to Ethernet Media Converter extends networks & converts optical fiber to RJ45 Copper/CAT6 - Industrial Hardened -40 to 75C temp - 1Gbps (Gigabit) - Open SFP - 12V-56VDC - Single Mode (SMF) or Multimode Fiber (MMF) - IP-30 Case 2 Year Warranty
Category: Repeaters & Transceivers
- Primary Information
Product Description: StarTech.com Industrial Fiber to Ethernet Media Converter, 1Gbps SFP to RJ45/ Cat6, Singlemode/Multimode Optical Fiber to Copper Gigabit Eternet Network, 12-56V DC, IP-30/ -40 to +75C - Fiber Media Converter (IMC1GSFP) - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE Device Type: Fiber media converter - RJ-45 / SFP (mini-GBIC) Form Factor: DIN rail mountable Cabling Type: 1000Base-SX, 1000Base-T Data Transfer Rate: 1 Gbps Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Dimensions (WxDxH): 3.2 in x 4.1 in x 1.3 in Weight: 5.08 oz Manufacturer Warranty: 2-year warranty - General
Device Type: Fiber media converter Form Factor: DIN rail mountable Color: Black - Networking
Connectivity Technology: Wired Cabling Type: 1000Base-SX, 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Data Transfer Rate: 1 Gbps Status Indicators: Port status, active, link Features: Flow control, auto-uplink (auto MDI/MDI-X), full duplex mode, 2KV Surge protection, 9 KB Jumbo Frame Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x - Expansion / Connectivity
Interfaces: 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - SFP female - Miscellaneous
Included Accessories: Power terminal block Mounting Kit: Included MTBF: 569,265 hours Compliant Standards: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, RoHS, EN 60950-1, WEEE, MSA, IP30, EN 60068-2-27, EN 60068-2-32, EN 60068-2-6 - Power
Power Device: External power adapter - Dimensions & Weight
Width: 3.2 in Depth: 4.1 in Height: 1.3 in Weight: 5.08 oz - Dimensions & Weight (Shipping)
Shipping Width: 8.3 in Shipping Depth: 6.4 in Shipping Height: 2.5 in Shipping Weight: 14.11 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | STARTECHCOM |
|---|---|
| UNSPSC | 43201553 |
| Part# | STC-IMC1GSFP |
| MFG Part# | IMC1GSFP |
| UPC | 65030889612 |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | DIN rail mountable |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE |
| Color | Black |
