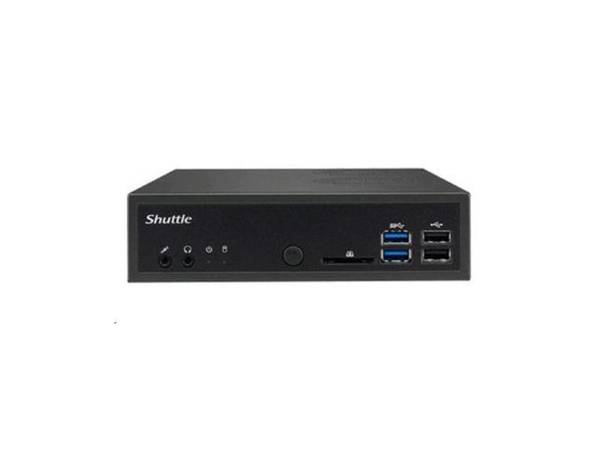

SHUTTLE COMPUTER 1.3 LITER SLIM PC/MEDIA PLAYER 5606622
SKU
5606622
CA$500.03
1.3 Liter Slim PC/Media Player, Skylake CPU, LGA1151; H110 Chipset; Max.16GB RAM; 4K Support
Category: Desktops
- Primary Information
System Type: Personal Computer Model: DH110 Cabinet Form Factor: Desktop Mainboard / Chipset Type: Intel H110 Express RAM / Technology: DDR3L RAM / Total Slots Qty: 2 RAM / Total Installed Size: 16 GB RAM / Memory Speed: 1600 MHz RAM Form Factor: SO DIMM 204-pin RAM / Max Supported Size: 32 GB Storage Controller Type: SATA 6Gb/s Optical Storage Type: None Audio Output: Realtek ALC662 channel High Definition Audio Storage Controller Type: SATA 6Gb/s Memory Card Reader: SD Card Reader Video Output Type: HDMI x1 + DisplayPort x1 Support dual display 4K playback (Dual channel memory recommanded) Speakers: No Speaker Power / Device Type: Power Adapter Power / Provided (W): 90 Watt Power / Voltage Required: Input:100- 240V AC Output: 19V/4.74A or 12V/7.5A DC Interfaces & Connections: (1) SATA 6 connectors (1) SATA power connector (1) 4pin fan connector (1) Front audio header (1) 1x4 pin USB header (1) D-sub connector (1) Auto power on header (1)External Power on (1)RS232 voltage switch Front I/O Ports: (1) Power-On button (1) Power LED (1) HDD LED (2) USB 2.0 port (2) USB 3.0 port (1) Earphone-Out (1) Microphone-In (1) SD Card reader Rear I/O Ports: (1) External power on/Clear CMOS header (2) USB 3.0 port (1) HDMI port (1) DisplayPort (1) eSATA+USB2.0 COM port (2) RJ45 Gigabit LAN port (1) RS232 (1) RS232/RS422/RS485 (1) PS/2 port (1) DC in (1) Kensington lock (2) Wireless Antenna fixture Expansion Bays Total (Free): (1) 2.5" HDD / SSD bay Expansion Slots Total (Free): (1) M.2 2260 Type M key socket. (1) M.2 2230 Type A,E Key socket. Width: 165 Mm Depth: 190 Mm Height: 43 Mm Features: Form Factor: 1.3L chassis - Memory
RAM / Total Slots Qty: 2 RAM / Technology: DDR3L RAM / Total Installed Size: 16 GB RAM / Memory Speed: 1600 MHz RAM Form Factor: SO DIMM 204-pin RAM / Max Supported Size: 32 GB - Storage
Optical Storage Type: None Storage Controller Type: SATA 6Gb/s - Expansion
Interfaces & Connections: (1) SATA 6 connectors (1) SATA power connector (1) 4pin fan connector (1) Front audio header (1) 1x4 pin USB header (1) D-sub connector (1) Auto power on header (1)External Power on (1)RS232 voltage switch Expansion Bays Total (Free): (1) 2.5" HDD / SSD bay Expansion Slots Total (Free): (1) M.2 2260 Type M key socket. (1) M.2 2230 Type A,E Key socket. Front I/O Ports: (1) Power-On button (1) Power LED (1) HDD LED (2) USB 2.0 port (2) USB 3.0 port (1) Earphone-Out (1) Microphone-In (1) SD Card reader Rear I/O Ports: (1) External power on/Clear CMOS header (2) USB 3.0 port (1) HDMI port (1) DisplayPort (1) eSATA+USB2.0 COM port (2) RJ45 Gigabit LAN port (1) RS232 (1) RS232/RS422/RS485 (1) PS/2 port (1) DC in (1) Kensington lock (2) Wireless Antenna fixture - Power
Power / Device Type: Power Adapter Power / Provided (W): 90 Watt Power / Voltage Required: Input:100- 240V AC Output: 19V/4.74A or 12V/7.5A DC - Video
Video Output Type: HDMI x1 + DisplayPort x1 Support dual display 4K playback (Dual channel memory recommanded) - Dimensions&Miscellaneous
Width: 165 Mm Depth: 190 Mm Height: 43 Mm - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43211508
| BRANDS | SHUTTLE |
|---|---|
| UNSPSC | 43211508 |
| Part# | SHT-DH110 |
| MFG Part# | DH110 |
| UPC | 887993000640 |
| RAM Form Factor | SO DIMM 204-pin |
| RAM / Total Installed Size | 16 GB |
| Mainboard / Chipset Type | Intel H110 Express |
| RAM / Memory Speed | 1600 MHz |
| RAM / Total Slots Qty | 2 |
| Storage Controller Type | SATA 6Gb/s |
| RAM / Technology | DDR3L |
| Cabinet Form Factor | Desktop |
| Power / Device Type | Power Adapter |
| Audio Output | Realtek ALC662 channel High Definition Audio |
| System Type | Personal Computer |
| Memory Card Reader | SD Card Reader |
| Speakers | No Speaker |
